ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).
Key : Operation symbols
.

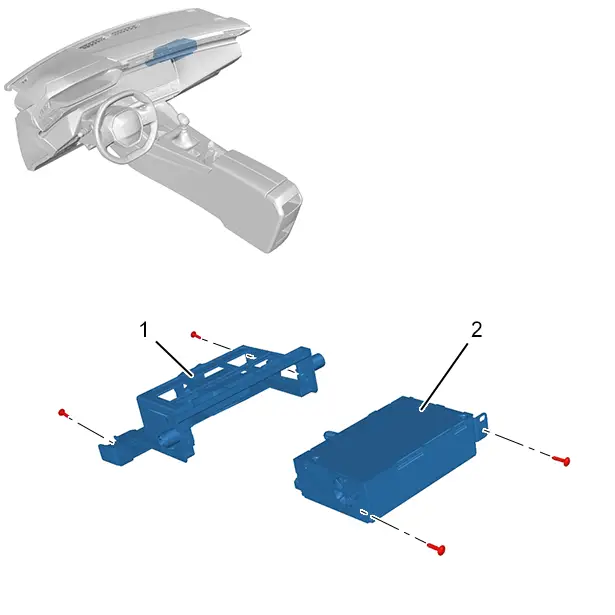

1. Location
Identification | Description | Quantity |
(1) | Audio system support | 1 |
(2) | Audio system | 1 |
2. Preliminary operations
CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Disconnect the ancillaries battery or batteries (depending on equipment).
Remove the passenger storage compartment
.
3. Removing

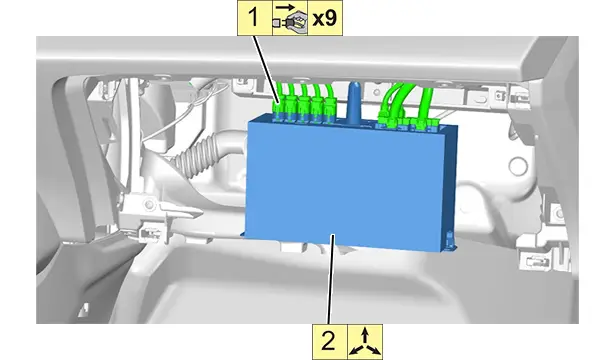

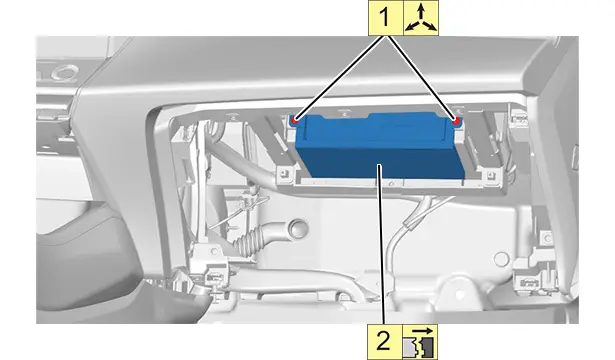

3.1. Audio system
CAUTION : Carry out the update procedure following replacement of the radio frequency connectivity box (BSRF) and/or of the audio-navigation system IVI
.

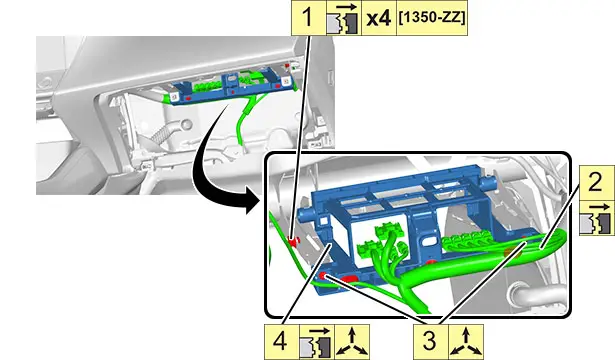

3.2. Audio system support
4. Refitting
CAUTION : Carry out the update procedure following replacement of the radio frequency connectivity box (BSRF) and/or of the audio-navigation system IVI
.
Proceed in the reverse order to removal.
5. Additional operations
Refit the passenger storage compartment
.
CAUTION : Perform the operations that are required after reconnecting the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Reconnect the ancillaries battery or batteries (depending on equipment).
6. Check
Check the operation of the various equipment.
