Peugeot 308: Tightening torques : ML6 type manual gearbox
Peugeot 308 2021-2025 (P5) Service Manual / Mechanical :: Gearbox assembly / Clutch / Tightening torques : ML6 type manual gearbox
ML6C
| Identification | Description | Tightening torque |

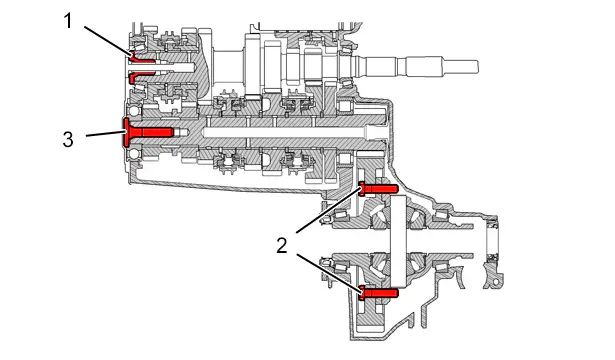

| (1) | Screw (Input shaft / Bearing) | 8 daNm |
| (2) | Screw ( differential / Differential crown wheel ) | 10,5 daNm |
| (3) | Screw (Output shaft / Bearing) | 13 daNm |
| Identification | Description | Tightening torque |

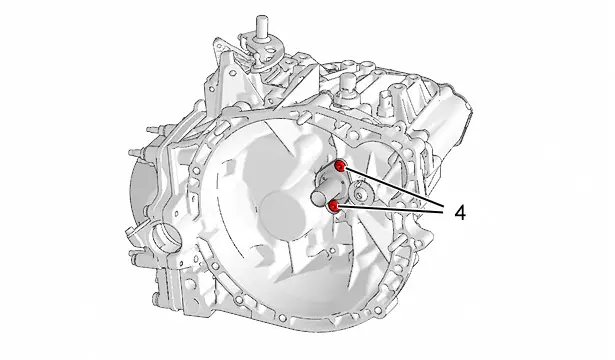

| (4) | Screw (Thrust bearing guide pin / Clutch housing ) | 4 daNm |
ML6C
| Identification | Description | Tightening torque |

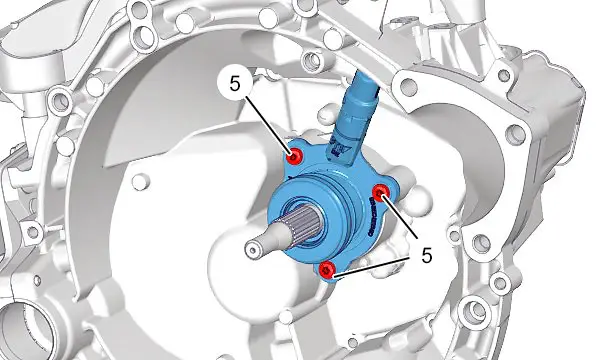

| (5) | Screw (Thrust bearing guide pin / Clutch housing ) | 0,9 daNm |
ML6C
| Identification | Description | Tightening torque |

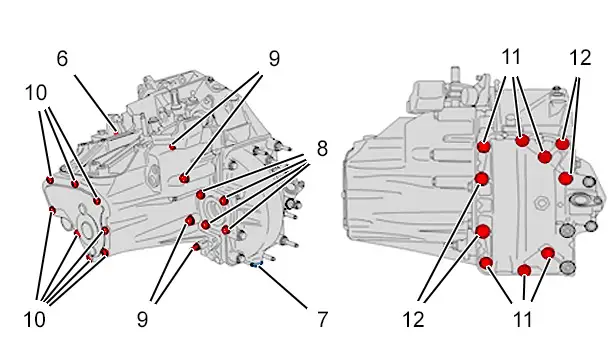

| (6) | Reversing lamp switch | 2,5 daNm |
| (7) | drain cap | 3 daNm |
| (8) | Screw ( differential bearing retaining plate / Final drive housing) | 2 daNm |
| (9) | Screw (Gearbox casing / Clutch housing ) | 2,3 daNm |
| (10) | Screw (6th gear cover / Gearbox casing) | 2 daNm |
| (11) | Screw (Differential housing / Gearbox casing) (Screw M8) | 2,2 daNm |
| (12) | Screw (Differential housing / Gearbox casing) (Screw M10) | 4 daNm |
| Identification | Description | Tightening torque |

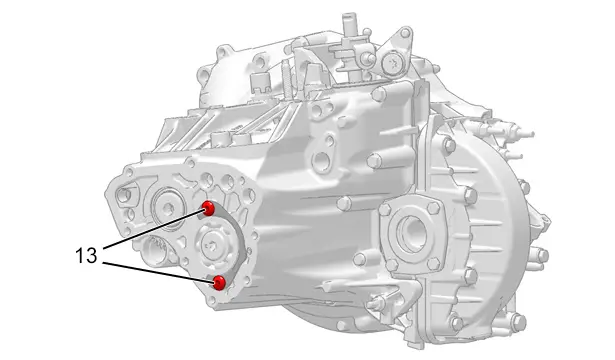

| (13) | Screw (6the gear bearing stop ring / Gearbox casing) | 2,4 daNm |
| Identification | Description | Tightening torque |

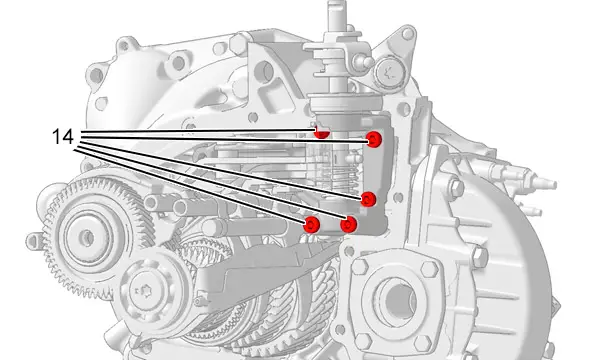

| (14) | Screw (Gear control / Gearbox casing) | 1,8 daNm |
| Identification | Description | Tightening torque |

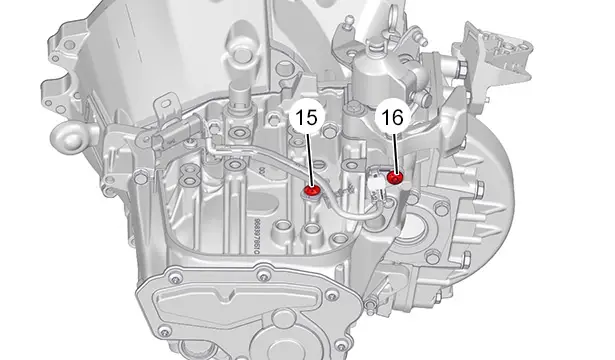

| (15) | Screw (Filler spout (Gearbox neutral sensor) / Gearbox casing) | 1 daNm |
| (16) | Screw (Gearbox neutral sensor / Gearbox casing) | 1 daNm |
| Identification | Description | Tightening torque |

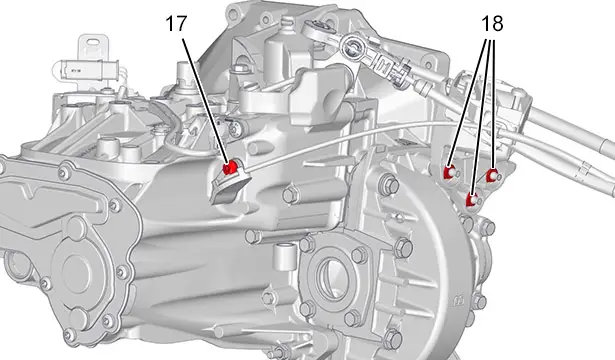

| (17) | Screw (Gear control / Gearbox casing) | 1 daNm |
| (18) | nuts (Gear control / Gearbox casing) | 2 daNm |
