Peugeot 308: Tightening torques : Components of the air conditioning circuit
Peugeot 308 2021-2025 (P5) Service Manual / Vehicle :: General / Data - identification / Tightening torques : Components of the air conditioning circuit

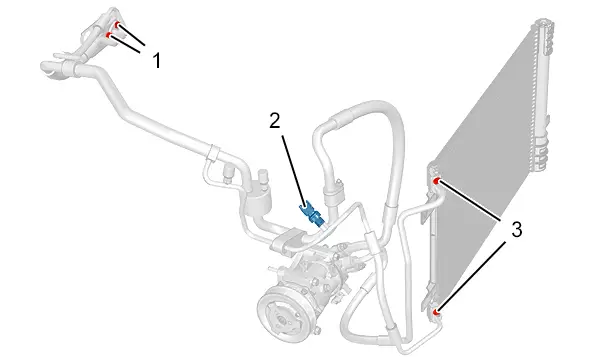

1. Air conditioning circuit
| Components | Description | Tightening torque |
| (1) | Nut (Refrigerant pipe / Air conditioning pressure relief valve) | 0,7 daNm |
| (2) | Air conditioning pressure switch | 0,7 daNm |
| (3) | Nuts (Refrigerant pipe / Air conditioning condenser) | 0,7 daNm |

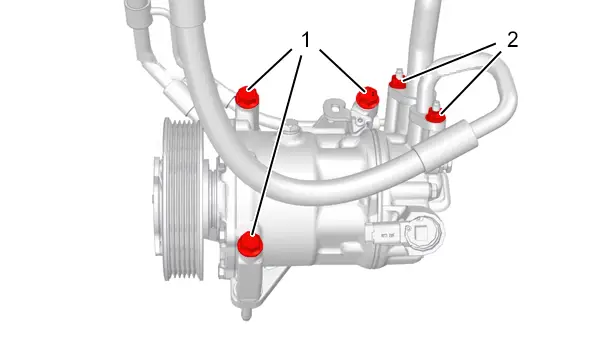

2. Air conditioning compressor (Fitting : 3 bolts)
| Components | Description | Tightening torque |
| (1) | Bolt (Air conditioning compressor ) | 2,4 daNm |
| (2) | Nuts (Refrigerant pipe / Air conditioning compressor ) | 0,8 daNm |

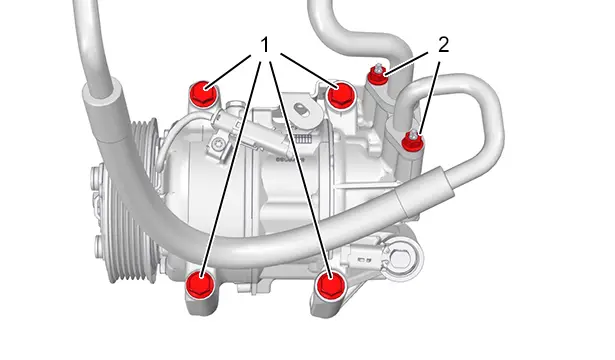

3. Air conditioning compressor (Fitting : 4 bolts)
| Components | Description | Tightening torque |
| (1) | Bolt (Air conditioning compressor ) | 2,4 daNm |
| (2) | Nuts (Refrigerant pipe / Air conditioning compressor ) | 0,8 daNm |

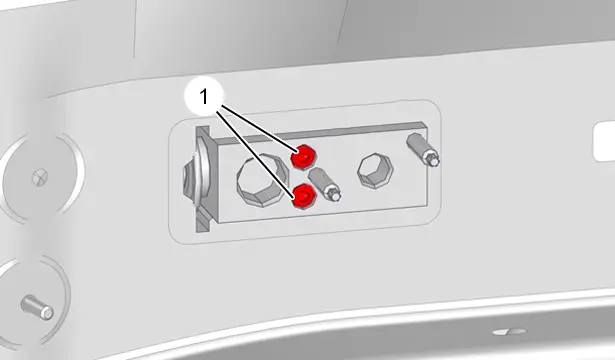

4. Air conditioning pressure relief valve
| Components | Description | Tightening torque |
| (1) | Bolt (Air conditioning pressure relief valve) | 0,7 daNm |
