Peugeot 308: Repair procedure : Connecting to the Wi-Fi access point for OTA (Over The Air)
ESSENTIAL : Observe the safety and cleanliness recommendations
.

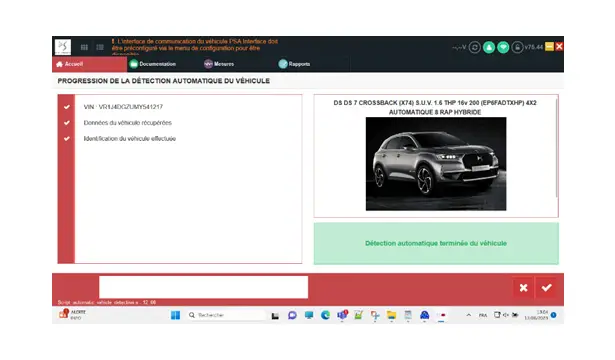

1. Vehicle identification
Connect the diagnostic tool.
Check that the vehicle has a radio frequency connectivity box (BSRF / RTBM).
N.B. : The identification can be carried out by automatic detection of the vehicle by entering the VIN or by selecting the vehicle manually.
2. Start of the global test
Validate the choice of the vehicle.

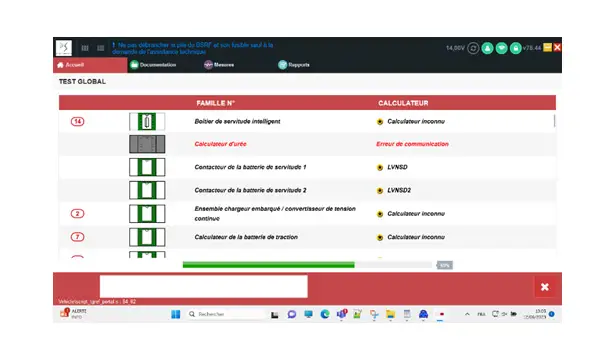

Validate the intermediate screens, then the global test starts automatically.
3. Selection of the “REPAIR” application
N.B. : During the global test, pop-up windows for switching off and switching on the ignition are displayed, follow the instructions.
At the end of the global test, a pop-up window is displayed for data collection, press "Validate" or "Refuse".

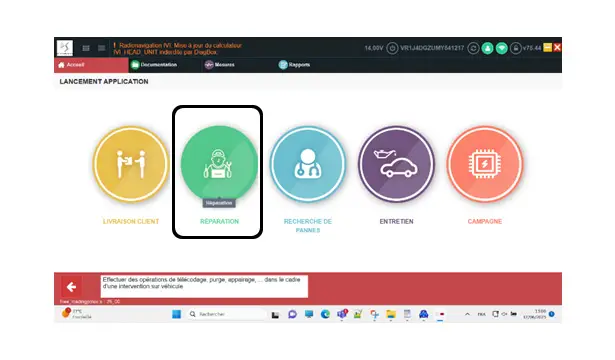

As soon as the global test is finished, select the “REPAIR” application on the menu.
4. Selection of the ECU in question
Once the “REPAIR” application has been selected, the global test reappears.

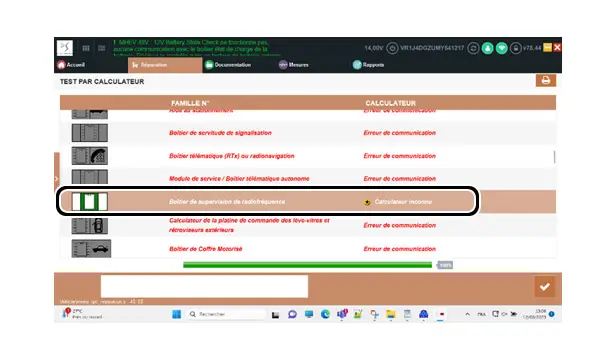

Select the “radio frequency connectivity box (BSRF / RTBM)” ECU.
Confirm.
5. Connecting to the Wi-Fi access point

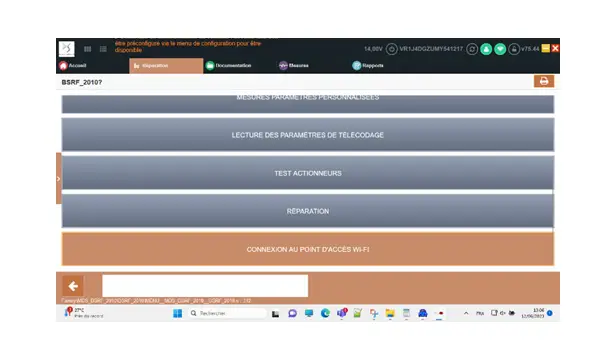

Once the “radio frequency connectivity box (BSRF / RTBM)” ECU has been selected, a menu is displayed with the “CONNECTION TO THE WI-FI ACCESS POINT” option.
Select the “CONNECTION TO THE WI-FI ACCESS POINT” option to start the procedure.
6. Steps of the procedure
6.1. Unlocking of the built-in systems interface (BSI1 / VSM1)

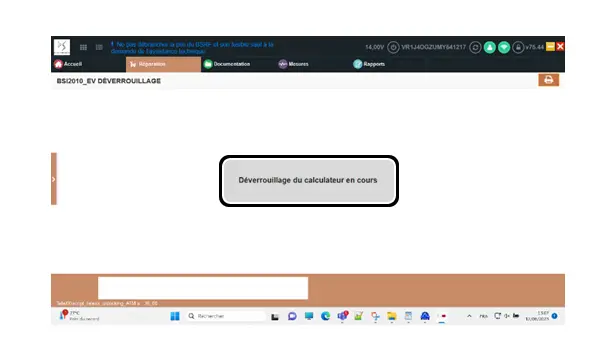

When the procedure is started, the DIAGBOX diagnostic tool carries out the unlocking of the built-in systems interface step (BSI1 / VSM1).
N.B. : Built-in systems interface (BSI1) (AEE2010 architecture ) / built-in systems interface (VSM1) (NEA architecture ).
Error scenarios possible when unlocking the built-in systems interface (BSI1 / VSM1)
| Illustration | Description |

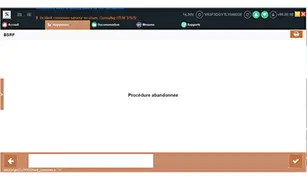

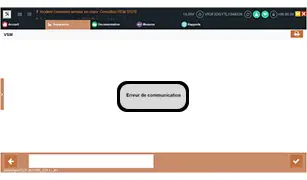

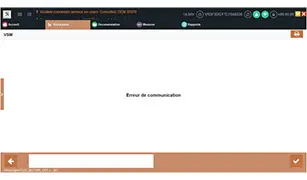

| Error in communication with the built-in systems interface (BSI1 / VSM1)After having clicked on "Validate”, the procedure finishes with an error |

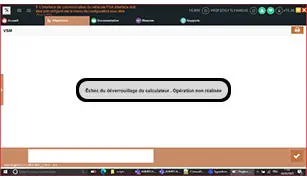

| Built-in systems interface unlocking error (BSI1 / VSM1)After having clicked on "Validate”, the procedure finishes with an error |

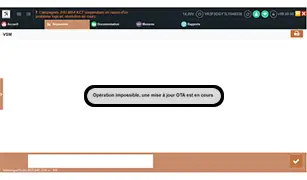

| Authorisation error relating to an OTA (Over The Air) operation in progressAfter having clicked on "Validate”, the procedure finishes with an error |
6.2. Screens for Internet connection steps

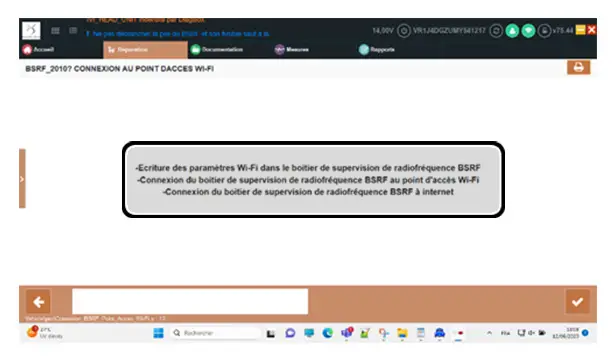

As soon as the built-in systems interface (BSI1 / VSM1) is unlocked, the DIAGBOX diagnostic tool displays an interface listing the steps to be followed in order to connect the radio frequency connectivity box (BSRF / RTBM) to the Internet.
6.3. Validation of the connection steps interface
After validation, the DIAGBOX diagnostic tool interface automatically follows the steps one by one until the end of the procedure
| Illustration | Description |

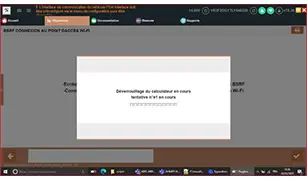

| The DIAGBOX diagnostic tool starts by unlocking the radio frequency connectivity box (BSRF / RTBM) |

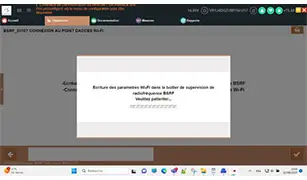

| Writing of the Wi-Fi parameters in the radio frequency connectivity box (BSRF / RTBM) |

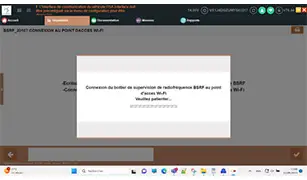

| Connection of the radio frequency connectivity box (BSRF / RTBM) to the Wi-Fi access point |
| Connection of the radio frequency connectivity box (BSRF / RTBM) to the Internet |

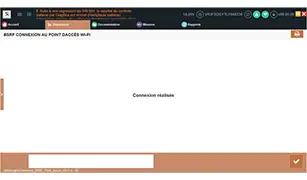

| The connection is completedClick on "Confirm" |
6.4. Error scenarios during completion of the connection steps
| Illustration | Description |
| Error in communication with the radio frequency connectivity box (BSRF / RTBM)After having clicked on "Validate”, the procedure finishes with an error |

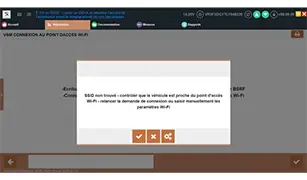

| The parameters for access to the Wi-Fi access point are incorrectThe pop-up window is displayed if one of the following requests is made- Approach the Wi-Fi access point then click on the validation button to restart the connection- Click on the “Cancel” button and the DIAGBOX diagnostic tool abandons the procedure with an error- Click on the settings button and the DIAGBOX diagnostic tool redirects to the Wi-Fi parameters manual writing screen |

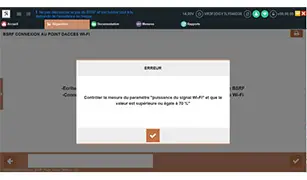

| The connection parameters are correct but the DIAGBOX diagnostic tool is disconnected from the Wi-Fi access pointThe DIAGBOX diagnostic tool displays the message “check the “Wi-Fi signal power” parameter measurement” and the value is 70% or moreOnce the pop-up window has been validated, the procedure is abandoned |
| The DIAGBOX diagnostic tool cannot complete the Internet connection, the procedure finishes with an error |
