1. Front electric drive machine inverter

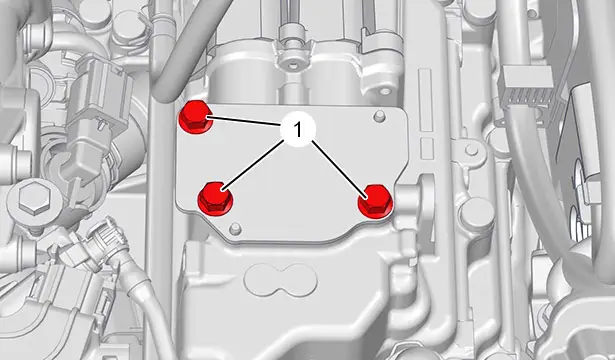

1.1. Cover

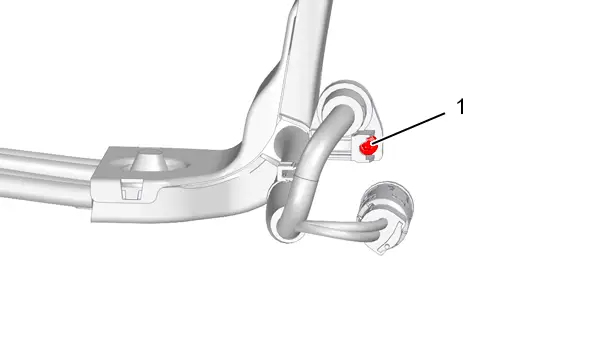

Marking	Description	Tightening torque
(1)	Bolt (Cover / Front electric drive machine inverter)	0,8 daNm

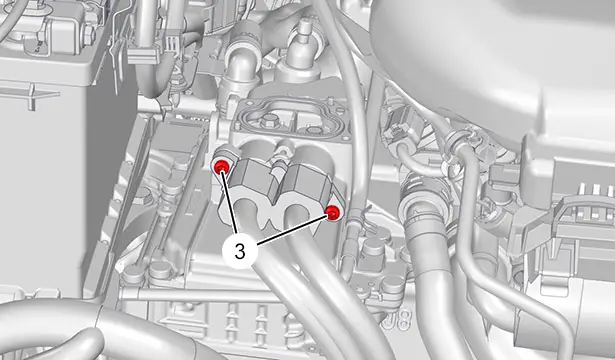

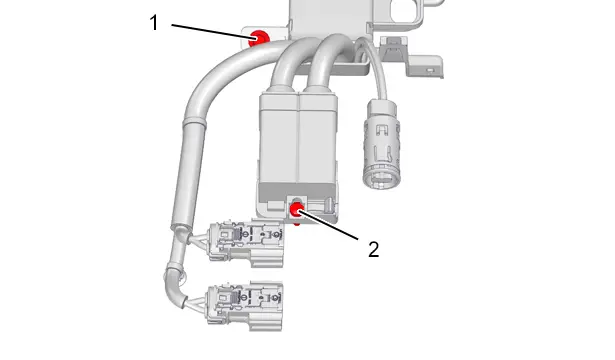

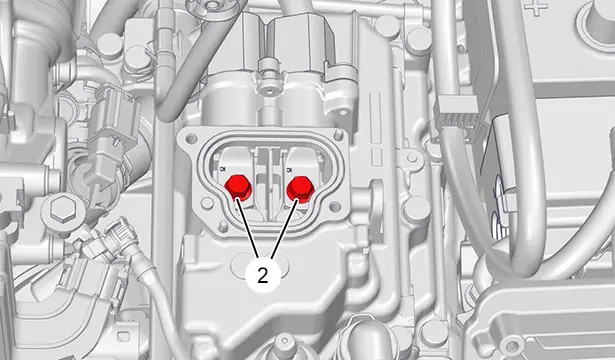

1.2. Power connector

Marking	Description	Tightening torque
(2)	Bolt (Power connector / Front electric drive machine inverter)	2 daNm

Marking	Description	Tightening torque
(3)	Bolt (Power connector / Front electric drive machine inverter)	0,4 daNm

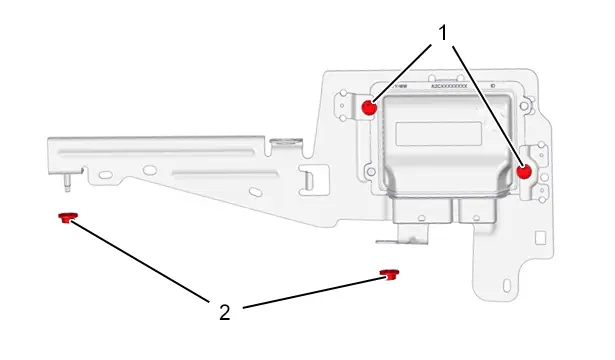

2. Hybrid drive train supervisor ECU

Marking	Description	Tightening torque
(1)	Bolt (Hybrid drive train supervisor ECU / Hybrid drive train supervisor ECU bracket)	0,8 daNm
(2)	Nuts (Hybrid drive train supervisor ECU bracket / Body)	0,8 daNm

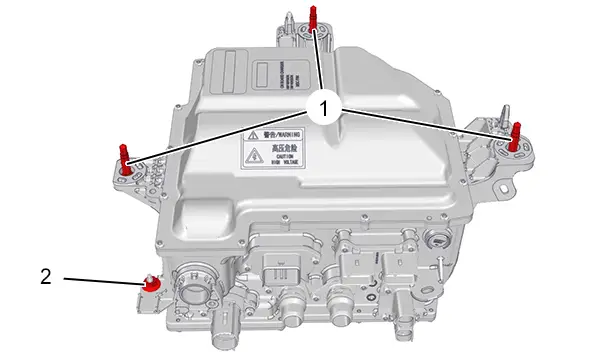

3. On-board charger/direct voltage transformer assembly

Marking	Description	Tightening torque
(1)	Bolt (On-board charger/direct voltage transformer assembly / Body)	2 daNm
(2)	Nut (Earth cable / On-board charger/direct voltage transformer assembly)	0,8 daNm
(*) Always to be replaced whenever removed

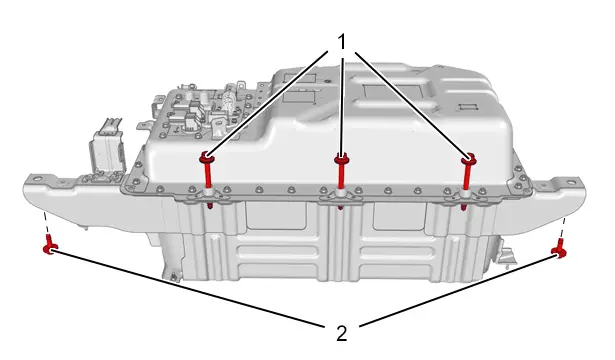

4. Traction battery

Marking	Description	Tightening torque
(1)	Bolt (Traction battery / Body) (*)	6 daNm
(2)	Bolt (Traction battery / Body)	6 daNm
(*) Always to be replaced whenever removed

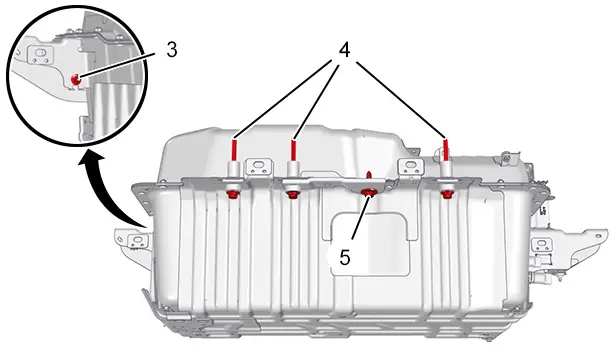

Marking	Description	Tightening torque
(3)	Nut (Earth cable / Traction battery)	0,8 daNm
(4)	Bolt (Traction battery / Body) (*)	2 daNm
(5)	Bolt (Traction battery / Body)	2 daNm
(*) Always to be replaced whenever removed

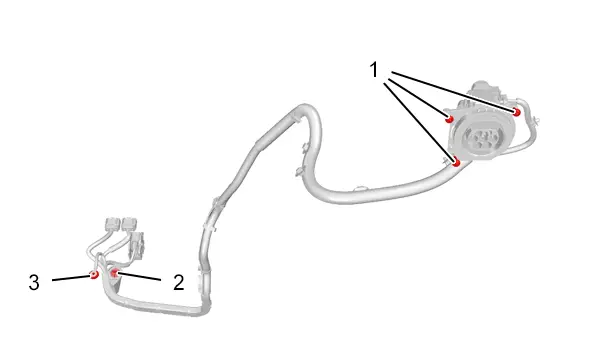

5. Charging socket unit

Marking	Description	Tightening torque
(1)	Bolt (Charging socket unit / Body) (*)	0,8 daNm
(2)	Nut (Charging socket unit / Body)	0,8 daNm
(3)	Nut (Earth cable / Body)	0,8 daNm
(*) Always to be replaced whenever removed
