Peugeot 308: Tightening torques : Engine - gearbox assembly mountings
Peugeot 308 2021-2025 (P5) Service Manual / Mechanical :: Engine / Engine assembly / Tightening torques : Engine - gearbox assembly mountings

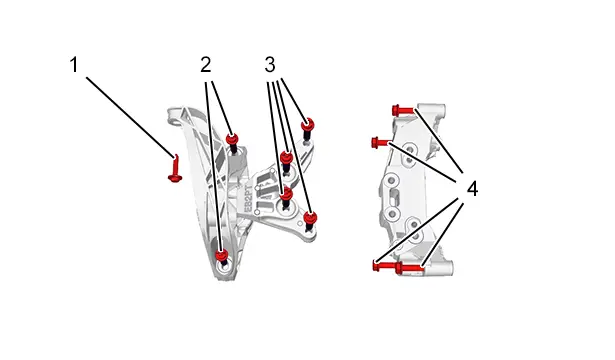

1. Right-hand engine mounting
| Identification | Description | Tightening torque |
| (1) | Bolt (Right-hand engine mounting / Body) | 6 daNm |
| (2) | Bolt (Right-hand engine mounting / Chassis leg) | 6 daNm |
| (3) | Bolt (Right-hand engine mounting / Intermediate mounting ) | 6 daNm |
| (4) | Bolt (Intermediate mounting / Cylinder head) | 6 daNm |

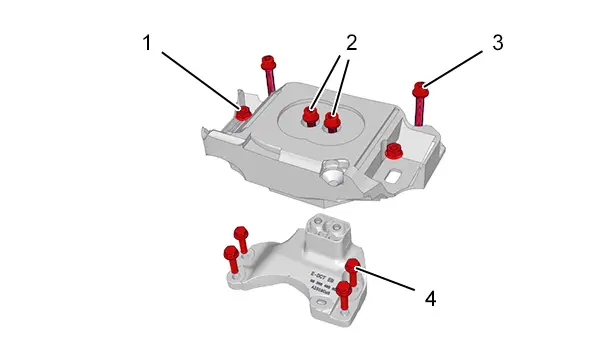

2. Gearbox mounting
| Identification | Description | Tightening torque |
| (1) | Nuts (Flexible bush / Chassis leg) | 6 daNm |
| (2) | Bolt (Flexible bush / Gearbox mounting) | 6 daNm |
| (3) | Bolt (Flexible bush / Chassis leg) | 6 daNm |
| (4) | Bolt (Gearbox mounting) | 6 daNm |

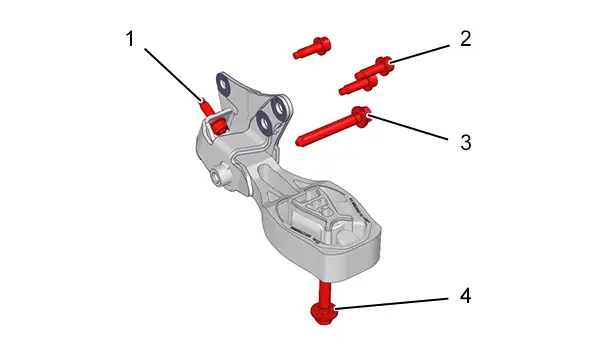

3. Torque reaction rod
| Identification | Description | Tightening torque |
| (1) | Bolt (Torque reaction rod) (*) | 6 daNm |
| (2) | Bolt (Torque reaction rod) (*) | 6 daNm |
| (3) | Bolt (Flexible bush) (*) | 9 daNm |
| (4) | Bolt (Flexible bush) (*) | 9 daNm |
| (*) Always replace after removal | ||

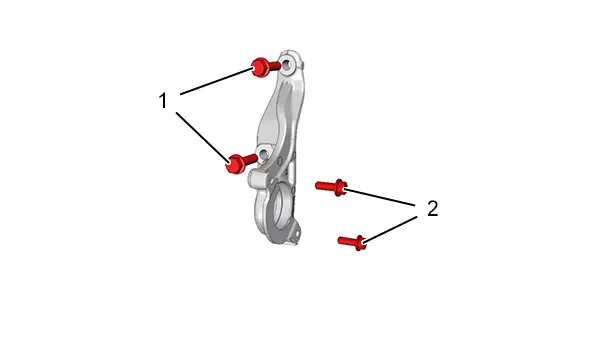

4. Driveshaft bearing
| Identification | Description | Tightening torque |
| (1) | Bolt (Driveshaft bearing) | 6 daNm |
| (2) | Bolt (Driveshaft bearing / Retaining plate ) | 2 daNm |
