Peugeot 308: Adjustment : Front radar<span dir="ltr"></span>(dynamic)

ESSENTIAL : Observe the safety and cleanliness recommendations .

CAUTION : Do not program the front radar in rain, snow or fog.

CAUTION : Only program the front radar on a road with obstacles at the sides.

N.B. : 2 operators are necessary to carry out the following operations.

1. Tooling

Workshop equipment : A diagnostic tool.

2. Preliminary operations

2.1. Prior conditions for checking

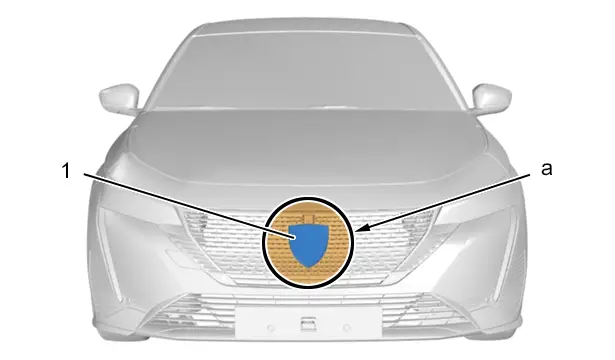

The brand logo (1) must be attached and must not show signs of impact, friction or deformation(at "a").

The front bumper and the front bumper grille must not show any signs of impact, friction or deformation of any kind(at "a").

Remove any excessive accumulation of mud, snow or ice which could affect the ride height of the vehicle.

The tyres must be inflated correctly.

2.2. Conditions required before adjusting

CAUTION : Vehicle in running order (Vehicle empty ).

3. Driving conditions

2 people are required :

• 1 person to drive
• 1 person to validate the information on the diagnostic tool

Drive one way down a road with static obstacles at the sides (a parked vehicle, road signs etc.).

Acceleration must be gradual (Do not accelerate sharply ).

Keep a constant speed.

The vehicle speed must be higher than 10 km/h over a distance of approximately 500 metres.

4. Calibration

CAUTION : Observe the prior conditions for initialisation.

Connect the diagnostic equipment and follow the initialisation procedure.

Perform a road test at a constant speed higher than 10 km/h.

Follow the complete initialisation procedure ; Using the diagnostic tool.
