Peugeot 308: Removing - refitting : Front mud guard
Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Front section / Front wing / Removing - refitting : Front mud guard
ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).
Key : Operation symbols
.

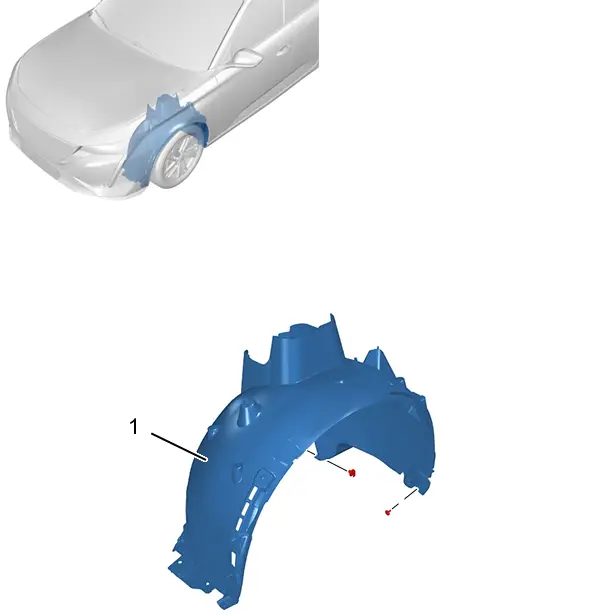

1. Location
| Marking | Description | Quantity (Per side) |
| (1) | Front mud guard | 1 |
2. Tooling
| Tool | Reference | Description |

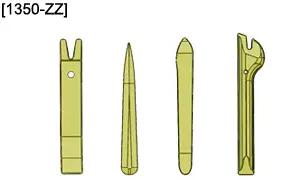

| [1350-ZZ] (*) | Stripping tools |
| (*) Use standard workshop equipment if the special tool is not available | ||

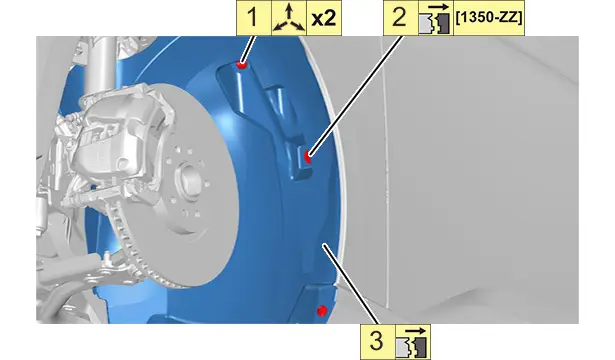

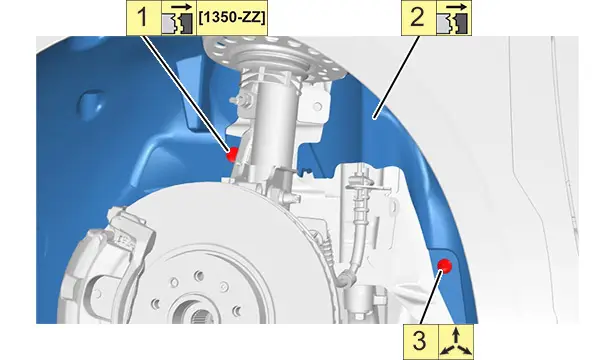

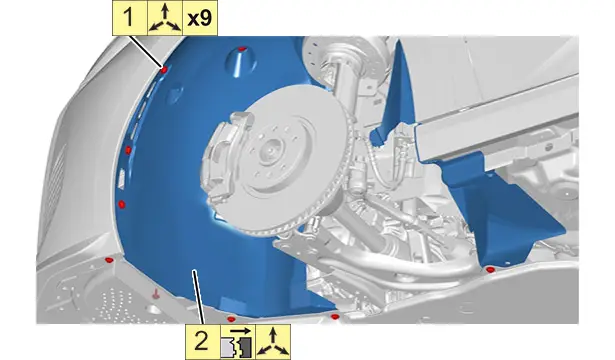

3. Removing
4. Refitting
Proceed in the reverse order to removal.
