Peugeot 308: Checking and adjusting values : MB type manual gearbox
Peugeot 308 2021-2025 (P5) Service Manual / Mechanical :: Gearbox assembly / Gearbox / Checking and adjusting values : MB type manual gearbox

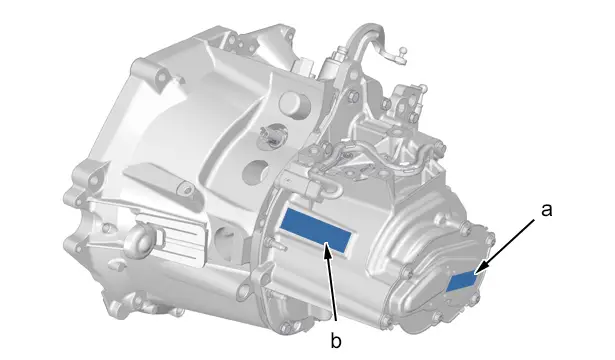

1. Identification
"a" location of the engraving of serial and gearbox numbers.
"b" Identification label.
2. Characteristic
| Ratios (Gearbox) | 1st | 2nd | 3rd | 4th | 5th | 6th | REVERSE GEAR |
| MB6 | 12 / 43 | 21 / 43 | 31 / 40 | 41 / 37 | 47 / 32 | 54 / 29 | 12 / 40 |
3. Lubrication
Recommended consumables
: Engine oils - Gearbox.
Oil capacity gearbox empty : 1,8 ± 0,2 litres.
Oil quality : TOTAL TRANSMISSION HBVFE2 75W.
Check the oil level : No overflowing.
Lubrication interval : Lubricated for life.
N.B. : Make a visual check of the sealing at each engine draining operation.

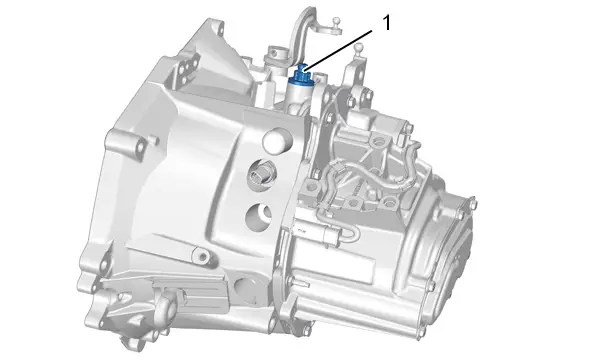

Refill the gearbox via the breather opening (1).
