Peugeot 308: Tightening torques : AMN8 and ATN8 automatic gearboxes

Peugeot 308 2021-2025 (P5) Service Manual / Mechanical :: Gearbox assembly / Gearbox / Tightening torques : AMN8 and ATN8 automatic gearboxes

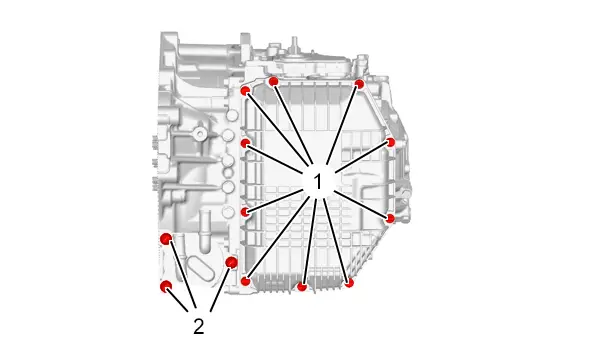

1. Hydraulic valve block housing / Automatic gearbox heat exchanger

1.1. Tightening torques

Marking	Description	Tightening torque
(1)	Screw (Hydraulic valve block housing)	0.7 daNm
(2)	Screw (Automatic gearbox heat exchanger)	2,1 daNm

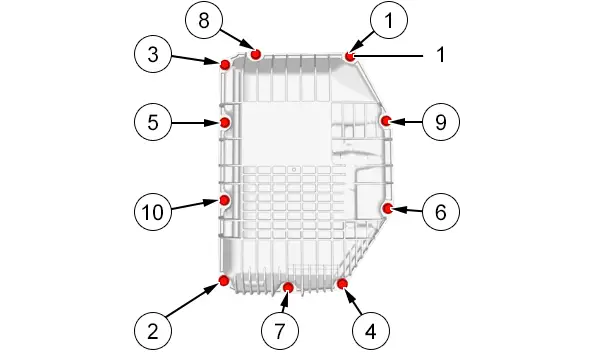

1.2. Sequence of tightening the bolts (1)

(1) Screw (Hydraulic valve block housing).

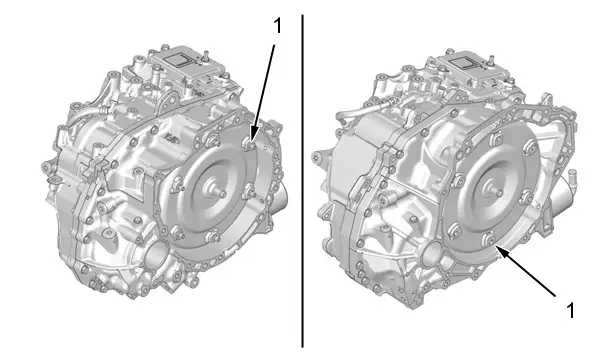

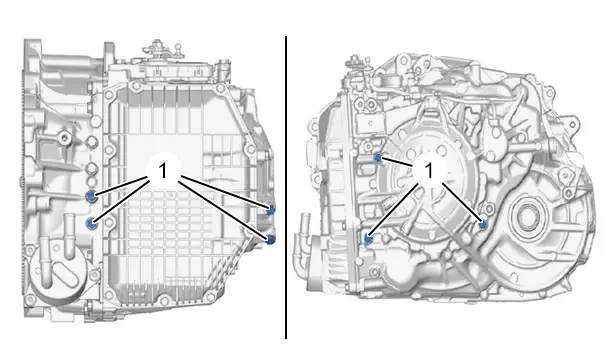

2. Converter

Marking	Description	Tightening torque
(1)	Nuts (Converter ) (*)	Pre-tightening to 1 daNm
		Tightening to 6 daNm
	Screw (Converter )	Pre-tightening to 1 daNm
		Tightening to 6 daNm
(*) Always to be replaced whenever removed

3. ECU

4. hydraulic block

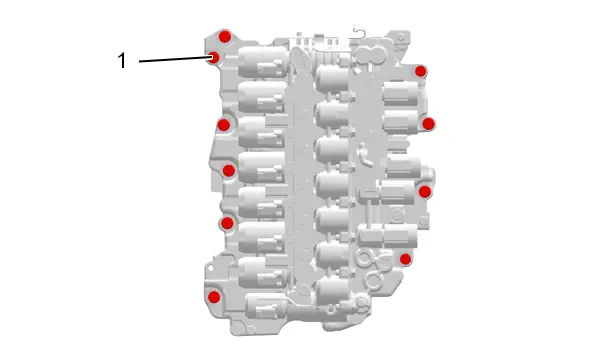

4.1. Tightening torques

Marking	Description	Tightening torque
(1)	Screw ( hydraulic block) (*)	1 daNm
(*) Observe the tightening order

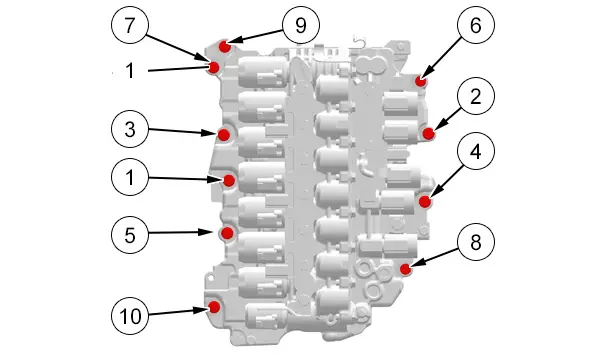

4.2. Sequence of tightening the bolts (1)

(1) Screw ( hydraulic block).

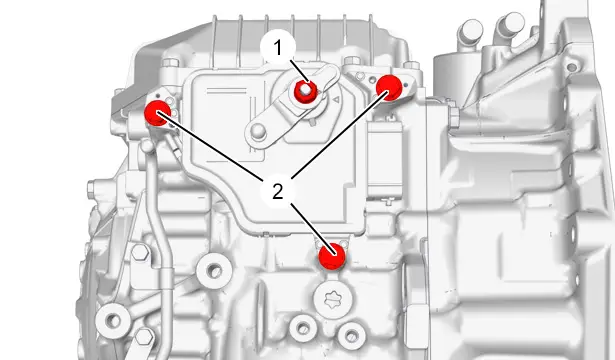

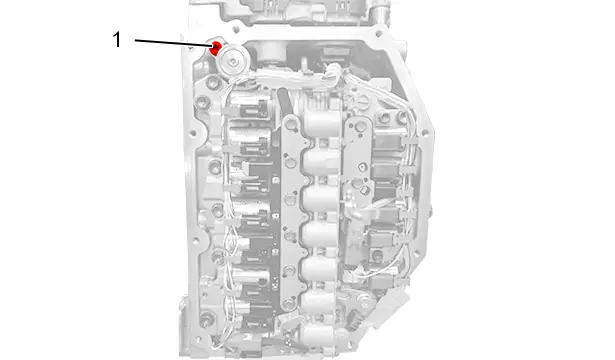

5. Parking control unlocking solenoid

Marking	Description	Tightening torque
(1)	Bolt	1 daNm

6. Caps

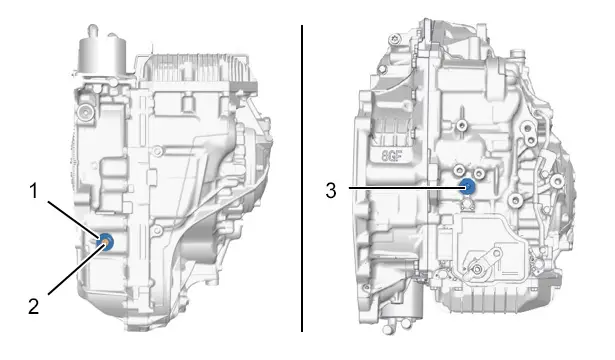

6.1. Draining - filling

Marking	Description	Tightening torque
(1)	Oil level plug	3,9 daNm
(2)	Oil overflow and drainage plug	0,7 daNm
(3)	Oil filler cap	4,7 daNm

6.2. Pressure take-off plugs

Marking	Description	Tightening torque
(1)	Pressure take-off plugs	0.7 daNm

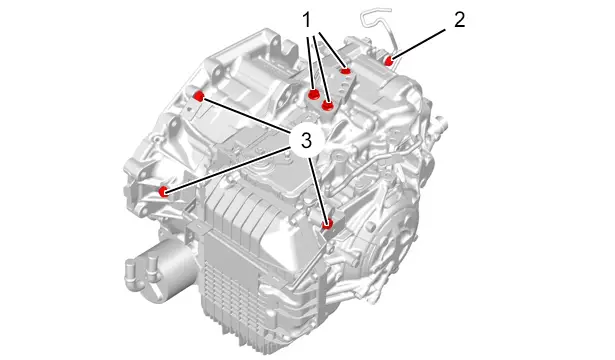

7. Controls

Marking	Description	Tightening torque
(1)	Screw (Gear control cables support ) (*)	2 daNm
(2)	Screw (Cable support ) (*)	2 daNm
(3)	Screw (Electrical harness support) (*)	2 daNm
(*) According to equipment
