Peugeot 308: Tightening torques : Components of the air conditioning circuit
Peugeot 308 2021-2025 (P5) Service Manual / Electric unit :: Comfort and convenience / Heating & air conditioning / Tightening torques : Components of the air conditioning circuit

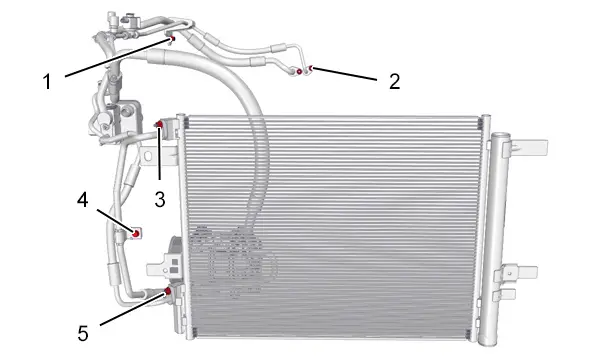

1. Air conditioning circuit
| Identification | Description | Tightening torque |
| (1) | Nut (Refrigerant fluid duct / Body) | 0,8 daNm |
| (2) | Nuts (Refrigerant pipes / Air conditioning pressure relief valve) | 0,8 daNm |
| (3) | Nut (Refrigerant fluid duct / Air conditioning condenser) | 0,8 daNm |
| (4) | Bolt(Refrigerant fluid duct / Cooling radiator) | 0,8 daNm |
| (5) | Nut (Refrigerant fluid duct /Air conditioning condenser) | 0,8 daNm |

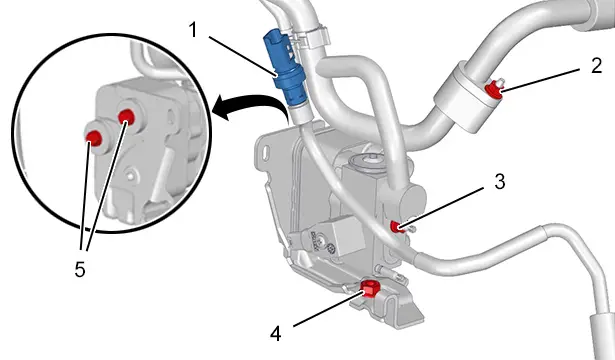

2. Coolant - air conditioning heat exchanger
| Identification | Description | Tightening torque |
| (1) | Air conditioning pressure switch | 0,6 daNm |
| (2) | Nut (Refrigerant fluid duct / Air conditioning compressor ) | 0,8 daNm |
| (3) | Nut (Refrigerant fluid duct / Coolant - air conditioning heat exchanger ) | 0,8 daNm |
| (4) | Nut (Coolant - air conditioning heat exchanger bracket / Body) | 2 daNm |
| (5) | Bolt (Support / Coolant - air conditioning heat exchanger ) | 0,8 daNm |

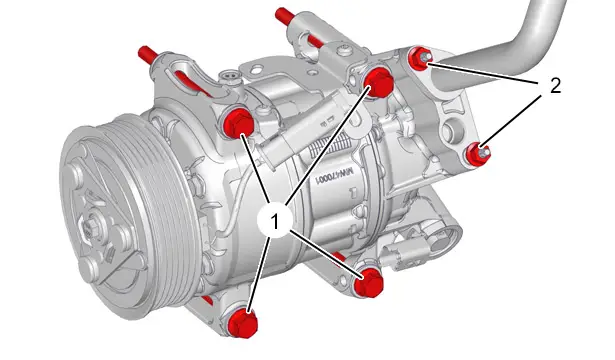

3. air conditioning compressor
| Identification | Description | Tightening torque |
| (1) | Bolt (Air conditioning compressor ) | 2,5 daNm |
| (2) | Nuts (Refrigerant fluid duct / Air conditioning compressor ) | 0,8 daNm |
4. Air conditioning pressure relief valve
| Identification | Description | Tightening torque |
| (1) | Bolt (Air conditioning pressure relief valve) | 0,7 daNm |

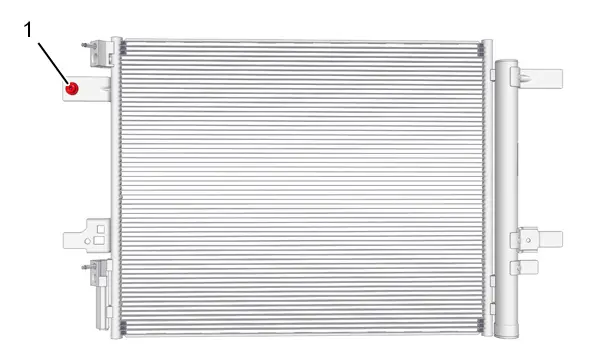

5. Air conditioning condenser
| Identification | Description | Tightening torque |
| (1) | Bolt (Air conditioning condenser / Cooling radiator) | 0,4 daNm |
