Peugeot 308: New vehicle preparation : Check of the ancillaries battery 1 - PEUGEOT vehicles

ESSENTIAL : Observe the safety and cleanliness recommendations .

Whatever its design, an ancillaries battery is subject to slow discharge while on stock, this owing to the following phenomena :

• Natural self-discharging of the ancillaries battery (4 % per month)
• Existence of permanent power consuming equipment as a result of the vehicle not having been inhibited by placing the shunt in the parc position

Regular recharging of the ancillaries battery will keep its charge intact.

A voltage lower than the nominal voltage (around 12 Volts) corresponds to a critical level of discharge which can lead to the ancillaries battery suffering damage.

The handing over to the customer of a new vehicle fitted with an ancillaries battery that has been stored with its voltage lower than the nominal voltage often engenders problems that spell dissatisfaction to the Customer and cost to the Marque.

Check the state of charge of the ancillaries battery while it is on stock, when destocking and also during the New Vehicle Preparation (PDI), so as to prevent it from reaching the critical level of discharge.

1. Tooling

CAUTION : Only "E-XTEQ / MIDTRONICS" testers or testers/chargers with a diagnostic function are approved by the PSA Group.

N.B. : Only a battery tester can diagnose the general condition of the ancillaries battery, the tester diagnosing not only the state of charge of the ancillaries battery, but also its ability to be recharged.

1.1. Recommended tools

N.B. : The Marque requires you to use the "E-XTEQ" battery tester, allowing you either to obtain reimbursement for the recharging, or to replace the ancillaries battery via the SAGAI application .

Illustration	Description	Supplier	Reference

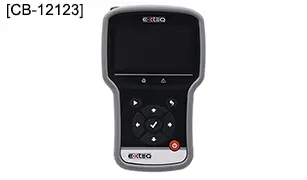

	"E-XTEQ (DS ONE)" battery tester (*)	E-XTEQ	[CB-12123]

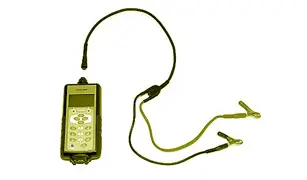

	"MIDTRONICS" battery tester (*)	MIDTRONICS	[EXP-925][EXP-925E]

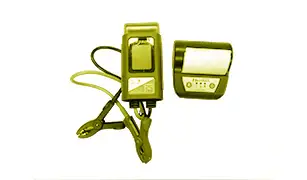

	battery tester/ printer (*)	NAYTHAN	1000BC

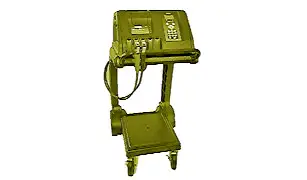

	tester/charger (*)	MIDTRONICS	[GRX-3925]

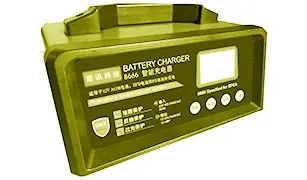

	tester/charger (*)	NAYTHAN	8666
	Voltmeter (**)	See chapter 3	See chapter 3

N.B. : (*) : 3 months after the deployment of the "E-XTEQ" "NAYTHAN" battery tester in the country, it is mandatory to use it during New Vehicle Preparation (NVP) ; "MIDTRONICS" codes/tickets will no longer be accepted as proof under warranty.

CAUTION : (**) Use of a voltmeter duly calibrated is tolerated in exceptional circumstances (A voltmeter only enables you to measure the ancillaries battery voltage. The voltmeter does not give you traceability of the checking of the ancillaries battery).

N.B. : The Marque requires you to use the "E-XTEQ " battery tester, allowing you either to obtain reimbursement for the recharging, or to replace the ancillaries battery via the SAGAI application.

Only a battery tester can diagnose the general condition of the ancillaries battery, the tester diagnosing not only the state of charge of the ancillaries battery, but also its ability to be recharged.

CAUTION : Certain commercial battery testers that are not approved technically cannot deliver a reliable diagnosis if the check is performed remotely.

1.2. Optional tools

Tool	Description	Supplier	Reference

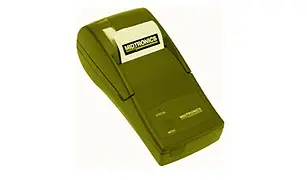

	Printer for tester A088	MIDTRONICS	A088 or A089

1.3. Standard tools

CAUTION : Use of a voltmeter duly calibrated is tolerated in exceptional circumstances. A voltmeter only enables you to measure the ancillaries battery voltage. The voltmeter does not give you traceability of the checking of the ancillaries battery (Not covered by the warranty).

Tool	Description

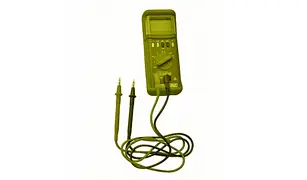

	Voltmeter

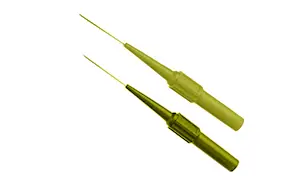

	Multimeter long probe set

CAUTION : The ancillaries battery charge status must be checked using an approved and calibrated voltmeter at least 1 time per year.

PSA Group-approved voltmeter types.

Description	Supplier	Reference
Digital multimeter with integral current measuring clip	FACOM	712
Digital multimeter	FACOM	714
Digital multimeter	SAM	FL-11
Digital multimeter	SAM	FL-12
Digital multimeter	SAM	FL-16

2. Checking the ancillaries battery 1 using a battery tester

Refer to the method : Check - Recharged : Ancillaries battery.

2.1. Definitions of the ancillaries battery charge status thresholds

Value displayed by the tester	Action
BATTERY OK	None
Battery requires charging	Recharge the ancillaries battery in accordance with the instructions given below
Battery must be replaced	Replace the ancillaries battery in accordance with the instructions given below
Battery in short-circuit	Replace the ancillaries battery in accordance with the instructions given below

2.2. Recommended tools

Description	Supplier	Tool part numbers
"E-XTEQ (DS ONE)" battery tester (*)	E-XTEQ	[CB-12123]
"MIDTRONICS" battery tester (*)	MIDTRONICS	[EXPP-925]
"MIDTRONICS" battery tester + starter circuit check (*)	MIDTRONICS	[EXPP-925E]

N.B. : (*) : "E-XTEQ" months after the deployment of the 3 battery tester in the country, it is mandatory to use it during New Vehicle Preparation (NVP) ; "MIDTRONICS" codes/tickets will no longer be accepted as proof under warranty.

3. Check of the charge status of ancillaries battery ‎1 using a voltmeter

CAUTION : To guarantee a reliable voltage reading, take the measurement on a vehicle at rest.

Refer to the method : Check - Recharged : Ancillaries battery.

3.1. Definition of the vehicle rest required before reading the voltage

A vehicle is considered to be at rest either if it has remained untouched (its engine not started, its lamps not switched on, the display "READY" not showing in the instrument panel, etc.) for at least one hour prior to the checking of the voltage, or if it has gone through the procedure for being placed at rest as described below.

CAUTION : If accessing the ancillaries battery necessitates leaving one of the doors open, manually close the catch of the lock of the door involved, to decoy the electrical system.

Procedure for placing the vehicle at rest :

• Switch on the headlamps for 2 minutes
• Switch off the headlamps
• Close the vehicle doors without locking them (Do not carry out any action for 10 minutes)
• Check the voltage before starting the engine
• If the catch of the lock of the door involved has been manually closed, return it to the open position

3.2. Definitions of the ancillaries battery voltage thresholds when at rest

Battery type Normal or "EF"

Value of the voltage measured at rest	Action
Voltage greater than 12,4 V	None
Voltage between 12 V and 12,4 V	Recharge the ancillaries battery in accordance with the instructions given below
Voltage less than 12 V	Replace the ancillaries battery in accordance with the instructions given below

Battery type VRLA / AGM

Value of the voltage measured at rest	Action
Voltage greater than 12,6 V	None
Voltage between 12 V and 12,6 V	Recharge the ancillaries battery in accordance with the instructions given below
Voltage less than 12 V	Replace the ancillaries battery in accordance with the instructions given below

3.3. Recommended tools

CAUTION : The Voltmeter used to check the battery must be calibrated at least 1 time per year.

Description	Supplier	Tool part numbers
Digital multimeter with integral current measuring clip	FACOM	712
Digital multimeter	FACOM	714
Digital multimeter	SAM	FL-11
Digital multimeter	SAM	FL-12
Digital multimeter	SAM	FL-16

4. Charging of ancillaries battery 1

4.1. Recommendations and instructions

CAUTION : Recharging the ancillaries battery 1 when connected to the vehicle using tooling that does not meet the specifications described below may destroy the ECUs on the vehicle.

The recharging must be carried out in a well-ventilated area.

Do not remove the ancillaries battery 1 in order to recharge it.

Recharging the ancillaries battery 1 must be carried out with the battery connected to the vehicle, using a battery charger which meets the following criteria (Normal, "EF" or "VRLA / AGM" types of battery) :

• Voltage limited to 16 V
• Adjustable maximum current
• Programmable or limited duration of charging
• Stopping of charging at a minimum current
• Safety from the risks of inverting the polarity
• Possibility to use the battery charger on a continuous basis

Specifications of the battery charger recommended by the manufacturer (MIDTRONICS) :

• Battery diagnosis (At the start and at the finish of battery charging)
• Rapid charge (Less than 3 hours)
• Traceability for monitoring of the battery charging

CAUTION : Keep to the correct sequence for connecting the battery charger cables on the terminals.

Order of connection of the cables (Without disconnection of the terminal leads) :

• Connect the positive cable on the charger to the positive terminal on the ancillaries battery 1
• Connect the negative cable on the charger to the negative terminal on the ancillaries battery 1

N.B. : If ancillaries battery ‎1 has to be replaced, recharge the new ancillaries battery ‎ before fitting it on the vehicle.

4.2. Check after ancillaries battery ‎1 has finished recharging

Once recharging of the ancillaries battery 1 has been completed, check the voltage in the ancillaries battery 1 while the vehicle is stationary.

If using a battery tester, check after recharging that the state of charge displayed by the battery tester is : " BATTERY OK ".

CAUTION : If accessing ancillaries battery ‎1 necessitates leaving one of the doors open, manually close the catch of the lock of the door involved, to decoy the electrical system.

If using a voltmeter, follow the procedure below :

• Switch on the headlamps for 2 minutes
• Switch off the headlamps
• Close the vehicle doors without locking them (Do not carry out any action for 10 minutes)
• Check the voltage in the ancillaries battery 1 before starting the engine
• Check that the ancillaries battery 1 voltage is greater than 12,8 V
• If the catch of the lock of the door involved has been manually closed, return it to the open position

5. Replacement of ancillaries battery ‎1

ESSENTIAL : Observe the safety and cleanliness recommendations .

CAUTION : After replacing or removing the ancillaries battery, carry out the operations below.

5.1. Check the replacement ancillaries battery

Specifications of the replacement ancillaries battery :

• New ancillaries battery (of the correct Part No.) with the same specifications as the original ancillaries battery (Voltage; Starting current ; Power capacity)
• Usage limit date later than the ancillaries battery replacement date
• Value displayed by the battery tester E-XTEQ / MIDTRONICS / NAYTHAN : "BATTERY OK"
• Voltage higher than 12,4 V if using a voltmeter (Normal, "EF" or "VRLA / AGM" types of battery)
• Voltage higher than 12,6 V if using a voltmeter for battery type "VRLA / AGM"

5.2. Connect the replacement ancillaries battery

CAUTION : Observe the tightening torques.

N.B. : The spade terminals may be of the screw type or of the clip type, referred to as quick-fit spade terminals.

In all cases the method for connecting the ancillaries battery terminals is as follows.

Illustration	operation

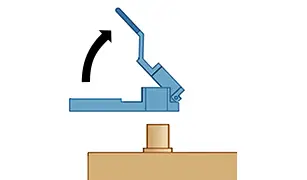

	Open the terminal (Screwed terminal)Lift the paddle (Clipped terminal)
	Open the terminal (Screwed terminal)Lift the paddle (Clipped terminal)Position the spade terminal connector fully down on the ancillaries battery terminal(at "a")
	Lock the spade terminal by tightening the screw or by pressing on the lever until the stop is reached(at "b")

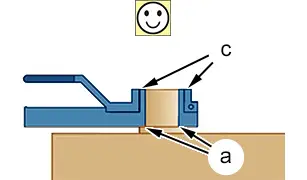

	Visually check that the connector is in contact with the base of the ancillaries battery terminal 1(at "a")Visually check that the connector is flush with the top of the ancillaries battery terminal (at "c")

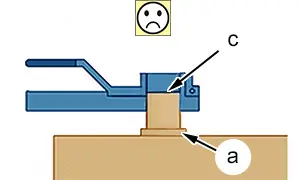

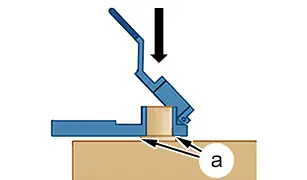

	Incorrect fitting : Example 1- The terminal is not in contact with the base of the ancillaries battery(at "a")- The terminal is not flush with the upper part of the ancillaries battery terminal(at "c")

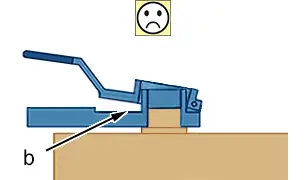

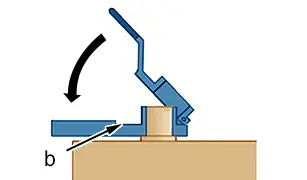

	Incorrect fitting : Example 2- The paddle is not locked(at "b")

5.3. Check

Move the cable about so as to check that the spade terminal connector is securely held on the ancillaries battery terminal.

CAUTION : Perform the operations that are required following a reconnection of the ancillaries battery .

6. Special case

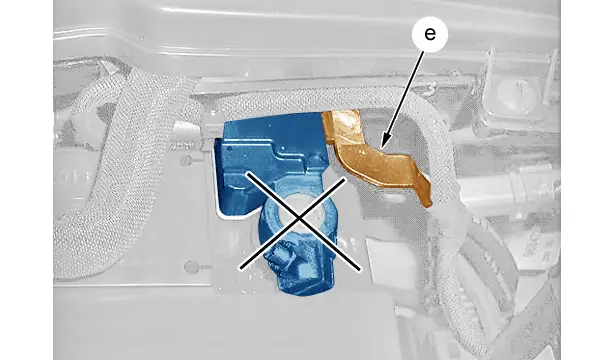

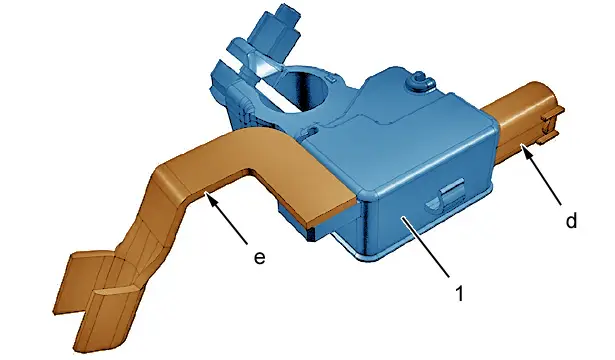

6.1. Vehicle equipped with an ancillaries battery charge status unit

(1) Ancillaries battery charge status control unit.

CAUTION : If connecting from an external battery charger : Do not connect directly to the negative terminal on the ancillaries battery 1 ; Connect on the earth cable carrier crimped to the output of the battery check status control unit (at "h") (or on a body earth nut).

CAUTION : If removing the battery charge status unit, when refitting, observe the tightening torque of the battery charge status unit integrated terminal on the ancillaries battery 1 negative terminal ; Always connect the battery charge status unit black 2-way connector last (In "j").

Start the vehicle : The "battery" icon should go off.

Delete the fault codes.

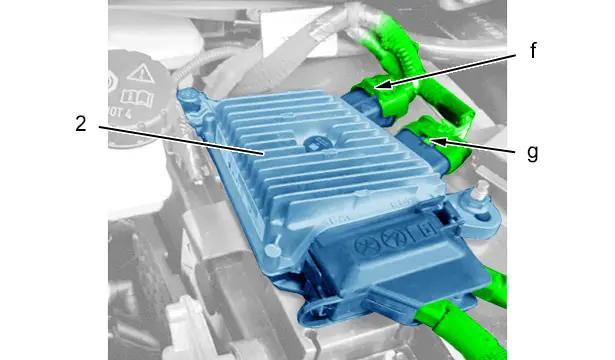

6.2. Electric vehicle fitted with an ancillaries battery switch (switch battery)

The ancillaries battery switch monitors and manages the ancillaries battery 1 charge status.

(2) Ancillaries battery switch.

ESSENTIAL : Before carrying out any repair on the ancillaries battery 1, select "P" mode, switch off the ignition, check that the instrument panel is off and that the vehicle charging cable is not connected.

CAUTION : If connecting from an external battery charger : Use the vehicle’s earth point, do not directly connect the ancillaries battery switch integrated negative terminal.

CAUTION : Do not disconnect the positive terminal while the "READY" lamp is on and while charging is in progress.

CAUTION : Do not charge the ancillaries battery 1 without first disconnecting the positive terminal .

CAUTION : If a repair is carried out on the ancillaries battery switch, when refitting, observe the tightening torque of the ancillaries battery switch integrated terminal ; Always connect the battery charge status management unit connectors last (At "f" and "g") .

Start the vehicle : The "battery" icon should go off.

Delete the fault codes.

N.B. : If the ancillaries battery 1 is discharged, the electric drive motor cannot be activated and the traction battery cannot be charged.

7. Access for checking and recharging the ancillaries battery 1

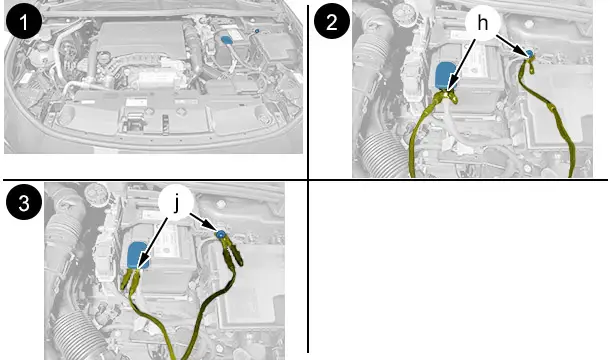

INTERNAL COMBUSTION DRIVE TRAIN

308 (P51 / P52) - 408 (P54) - 408 Malaysia (P54C) - 408 X China (P54C).

Figure ① : Installation of the ancillaries battery ‎1 :

• The ancillaries battery is located under the bonnet
• The ancillaries battery is protected by a cover clipped onto the positive terminal
• A remote earth is located on the bulkhead on the right-hand side

Figure ② : Checking the ancillaries battery using either a battery tester or a voltmeter :

• Check the charge status of the ancillaries battery 1 using either a battery tester or a voltmeter (black probe on the remote earth and red probe on the positive terminal under the protective cover) (In "h")
• Disconnect the battery tester or the voltmeter

Figure ③ : Recharging the ancillaries battery :

• Connect a charger approved by the manufacturer to the ancillaries battery 1 (black cable on the remote earth and red cable on the positive terminal under the protective cover) (In "j")
• Using the approved charger, commence the recharging of the ancillaries battery 1, following the manufacturer’s instructions
• Disconnect the charger

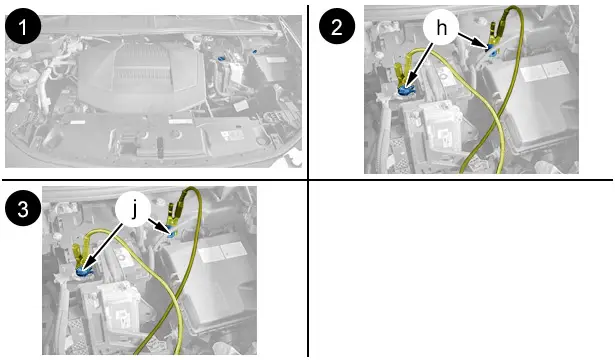

ELECTRIC DRIVE TRAIN

e-308 (eP51 / eP52).

Figure ① : Installation of the ancillaries battery ‎1 :

• The ancillaries battery is located under the bonnet
• A remote earth is located on the bulkhead on the right-hand side

Figure ② : Checking the ancillaries battery using either a battery tester or a voltmeter :

• Check the state of charge of the ancillaries battery 1 using either a battery tester or a voltmeter (black probe on the remote earth and red probe on the positive terminal) (In "h")
• Disconnect the battery tester or the voltmeter

Figure ③ : Recharging the ancillaries battery :

• Connect a charger approved by the manufacturer to the ancillaries battery 1 (black cable on the remote earth and red cable on the positive terminal) (In "j")
• Using the approved charger, commence the recharging of the ancillaries battery 1, following the manufacturer’s instructions
• Disconnect the charger
