Peugeot 308: New vehicle preparation : Instructions for use - "MIDTRONICS" battery tester

ESSENTIAL : Observe the safety and cleanliness recommendations .

N.B. : 3 months after the deployment of the "E-XTEQ" battery tester in the country, it is mandatory to use it during New Vehicle Preparation (NVP) ; "MIDTRONICS" codes/tickets will no longer be accepted as proof under warranty.

1. Presentation

1.1. Roles of the "MIDTRONICS" battery tester

Advantages :

• To avoid any battery failures arising after handover to the customer
• To remove contraints on accessibility : Software specific to PSA enables a check to be made either on the ancillary battery terminals or on the remote terminals
• Direct reading of the diagnosis on the battery tester (BATTERY OK ; CHARGE THE BATTERY ; CHARGE AND TEST AGAIN ; REPLACE THE BATTERY)
• Perform a diagnosis based on the reading of the voltage and the state of health of the ancillaries battery
• Justify warranty credit claims by publishing a "test code" transmitted by infrared connection to the diagnostic tool (coherence between the result of the check and the action performed by the preparer) or printed via the "MIDTRONICS" printer

1.2. Presentation of the tools

Illustration	Description	Reference "MIDTRONICS"

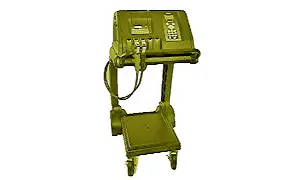

	battery tester	EXP-925EXP-925 EST

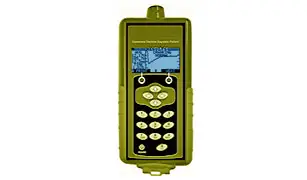

	tester / Battery charger	GRX-3925

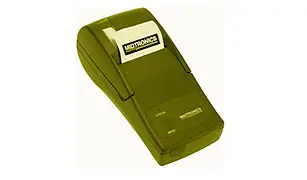

	printer	A088A089

2. Inspection of the "MIDTRONICS" battery tester

CAUTION : The periodic inspection is the responsibility of the owner of the "MIDTRONICS" battery tester.

Have the "MIDTRONICS" battery tester checked and calibrated every years in an official "MIDTRONICS" approved technical centre.

3. Checking the version number and the configuration of the language of use of the "MIDTRONICS" battery tester

N.B. : Warranty credit claims will only be taken into account if the tool "MIDTRONICS" has the latest update.

CAUTION : The temperature during use has to be between 0 and 50°C. The storage temperature has to be between 20 and 70°C.

Connect the "MIDTRONICS" battery tester to the ancillaries battery or to the remote terminals.

The battery tester is supplied with voltage.

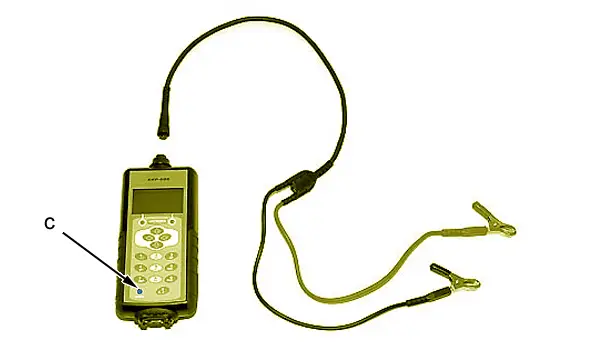

Press on button "c" to supply the battery tester with voltage (if necessary).

The version displayed should be version V1.09.

N.B. : If this is not the case, refer to the section on "Updating the battery tester".

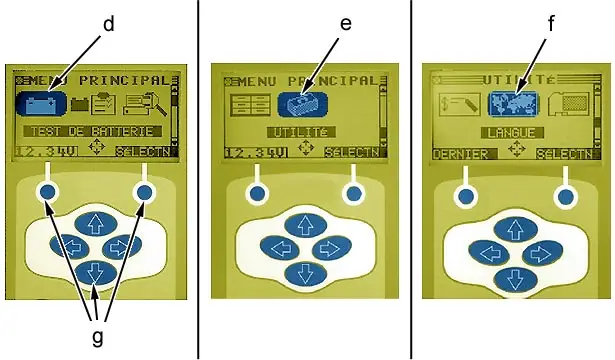

Select the desired menu via the direction arrows and the selection buttons "g" :

• Battery test : "d" menu
• Selection of language : Menu "e" then menu "f"
• Disconnect the "MIDTRONICS" battery tester

4. Updating of the battery tester

Depending on the design of the new vehicles, it may be necessary to update the battery tester.

N.B. : The necessity of updating the battery tester is specified in the note accompanying the launch of the vehicle.

Procedure to be followed (*).

Operation for saving existing data :

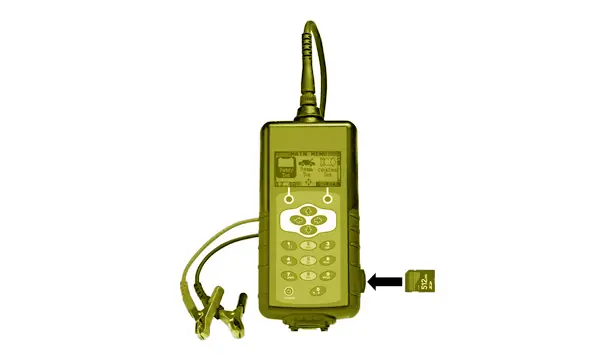

• Extract the SD card from the battery tester
• Insert the SD card into a PC
• Save all the files ".csv" that are on the SD card into a directory of the PC (Possible loss of data during the update)
• Remove the SD card from the PC
• Insert the SD card in the battery tester

N.B. : (*) This procedure necessitates the use of a PC that has an SD card reader and a network connection.

Identification of the version installed, and the version to be downloaded :

• Switch on the battery tester to gain access to the main menu
• Select "Utility" from the main menu
• Select "Format" (In the "Utility" menu)
• Select "YES", When the message "On Hold" appears
• Select "Update", In the "Utility" menu
• Select "Record configuration", then OK or NEXT (according to model)
• Select "Info", In the Main Menu
• Select "Version" (In the "Info" menu)
• The screen displays the version installed in the "MIDTRONICS" battery tester
• Determine the version to be downloaded from the table below

tester	Version installed	Version to be downloaded
EXP- 925	V1.00 / 192-628A	EXP-925 A (V1.00) towards O (V1.09)
	V1.00 / 192-628B	EXP-925 B (V1.00) towards O (V1.09)
	V1.01 / 192-628C	EXP-925 C (V1.01) towards O (V1.09)
	V1.02 / 192-628D	EXP-925 D (V1.02) towards O (V1.09)
	V1.04 / 192-628H	EXP-925 H (V1.04) towards O (V1.09)
	V1.05 / 192-628I	EXP-925 I (V1.05) towards O (V1.09)
	V1.06 / 192-628J	EXP-925 J (V1.06) towards O (V1.09)
	V1.07 / 192-628K	EXP-925 K (V1.07) towards O (V1.09)
	V1.08 / 192-628N	EXP-925 N (V1.08) towards O (V1.09)
	V1.09 / 192-628O	(V1.09) No update necessary
EXP- 925 EST	V1.00 / 192-631A	EXP-925 EST A (V1.00) towards O (V1.09)
	V1.00 / 192-631B	EXP-925 EST B (V1.00) towards O (V1.09)
	V1.01 / 192-631C	EXP-925 EST C (V1.01) towards O (V1.09)
	V1.02 / 192-631D	EXP-925 EST D (V1.02) towards O (V1.09)
	V1.04 / 192-631G	EXP-925 EST G (V1.04) towards O (V1.09)
	V1.05 / 192-631H	EXP-925 EST H (V1.05) towards O (V1.09)
	V1.06 / 192-631I	EXP-925 EST I (V1.06) towards O (V1.09)
	V1.07 / 192-631J	EXP-925 EST J (V1.07) towards O (V1.09)
	V1.08 / 192-631M	EXP-925 EST M (V1.08) towards O (V1.09)
	V1.09 / 192-631O	(V1.09) No update necessary
GRX-3925	V1.07 / 192-210415A	(V1.07) towards (V1.09)
	V1.08 / 192-210415B	(V1.08) towards (V1.09)
	V1.09 / 192-210415O	(V1.09) No update necessary

Saving the update files onto the SD card :

• Extract the SD card from the battery tester
• Insert the SD card into a PC (Do not format the SD card)
• On the manufacturer’s after sales portal, under "Technical Documentation / Diagnostics", select "General"
• "Static Diagnostics" opens in a new window
• Select the language of use
• Under "MIDTRONICS / MIDTRONICS battery tester update", download the update ".zip" file available
• Extract from the ".zip" file the 2 ".hex" files corresponding to the version that is to be downloaded
• Copy the 2 ".hex" files onto the SD card (Do not copy the directory)
• Remove the SD card from the PC
• Insert the SD card in the battery tester

Updating the microsoftware of the tester :

• Connect the battery tester to a 12 V battery to prevent any loss of power during the update process
• Select "Utility" from the main menu
• Select "Update" (In the "Utility" menu)
• Select "Microsoftware" then "OK" or "NEXT" (according to model)
• Select "YES", When the message "On Hold" appears
• The tester updates the FLASH memory then the EEPROM
• After the message appears indicating that the update is completed, switch the battery tester off and then back on again

Confirmation of the update of the tester microsoftware :

• Select "Utility" from the main menu
• Select "Update" (In the "Utility" menu)
• Select "Load Config" then "OK" or "NEXT" (according to model)
• After the message has displayed indicating that the configuration is loaded, depower and then repower the "MIDTRONICS" battery tester

N.B. : The new current version displays on the start-up screen after a few seconds (The version displayed should be version V1.09).

This information is also permanently available in "Version" :

• Select "Info" (In the Main Menu)
• Select "Version" (In the "Info" menu)

Configuration of the tester :

• Select "Utility" from the main menu
• Select "Tester configuration" (In the "Utility" menu)
• Enter and confirm the following parameters : The time display format, the time, the date display format, the date, the type of user and the region of use

5. Preliminary operations

For the measurement to be reliable, perform the battery test at the start of the PDI, respecting the following mode of operation :

• Check that the BSI shunt is in the "Park" position (PEUGEOT vehicles)
• Switch on the ignition (**)
• Switch on the dipped headlamps
• Start the engine (***)
• Move the vehicle forwards into the inspection zone
• Release the bonnet using the bonnet release inside the vehicle
• Switch off the engine (****) : (Automatic extinction of the vehicle lamps (according to model)
• Switch on the ignition (**)
• Turn on the dipped beams, or place the air blower control in the intermediate position (For the following vehicles : PEUGEOT BIPPER, PEUGEOT BOXER)
• Wait 5 seconds
• Turn off the dipped beams, or stop the air blower (according to model)
• Switch off the ignition (*****)
• Switch off all the electrical consumers
• Get out of the vehicle
• Close the accesses (If accessing the ancillaries battery necessitates leaving one of the doors open, manually close the catch of the lock of the door involved, to decoy the electrical system)
• Wait 4 minutes
• Perform the battery test

(**) The switching on of the ignition differs depending on the type of vehicle :

• Standard vehicle : Place the key in the "Ignition" position
• Vehicle with hands-free starting : Press the button "START" (Without pressing on the brake pedal (automatic gearbox) or on the clutch pedal (manual gearbox))
• Electric vehicle : Turn the key to "ON" or "MAR" (according to model)

(***) Starting the vehicle differs depending on the type of vehicle :

• Standard vehicle : Turn the key to position "Start"
• Vehicle with hands-free starting : Press on the brake pedal (automatic gearbox) or on the clutch pedal (manual gearbox), and press on the "START" button
• Electric vehicle : Turn the key to "START" or "AVV" and hold it in this position until the "READY" or "vehicle ready to move" indicator lamp is lit on the instrument panel (according to model)

(****) Stopping the vehicle differs depending on the type of vehicle :

• Standard vehicle : Turn the key to position "0"
• Vehicle with hands-free starting : Press the button "START"
• Electric vehicle : Turn the key to "OFF" or "STOP" (according to model)

(*****) The switching off of the ignition differs depending on the type of vehicle :

• Standard vehicle : Turn the key to position "0"
• Vehicle with hands-free starting : Press the button "START" (Without pressing on the brake pedal (automatic gearbox) or on the clutch pedal (manual gearbox))
• Electric vehicle : Turn the key to "OFF" or "STOP" (according to model)

CAUTION : When handing over to the customer is not done following the "New vehicle Preparation (PDI)", perform any checks on the ancillaries battery with the BSI shunt in the "customer" position.

N.B. : Note down the result of the checking of the ancillaries battery on the FFA (’loose items check sheet’) so as to guarantee traceability.

6. Precautions to be taken during use

ESSENTIAL : Observe the safety and cleanliness recommendations .

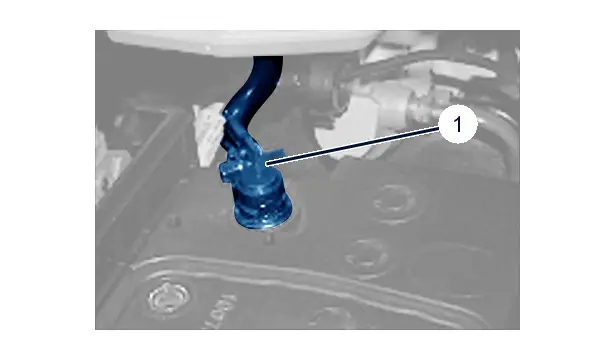

6.1. Vehicles without a quickfit clip secured on the positive terminal

CAUTION : Connect the red clip of the "MIDTRONICS" battery tester on the metal component (1) close to the ancillaries battery terminals, as close as possible to the crimping of the power wire.

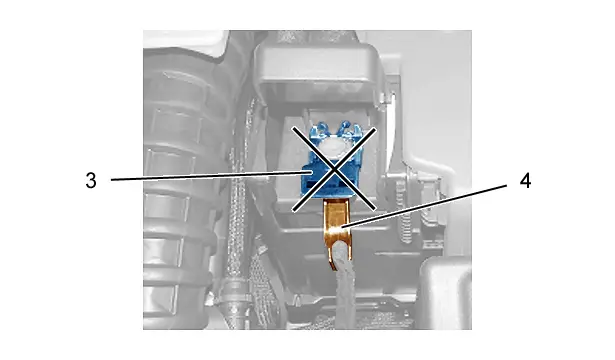

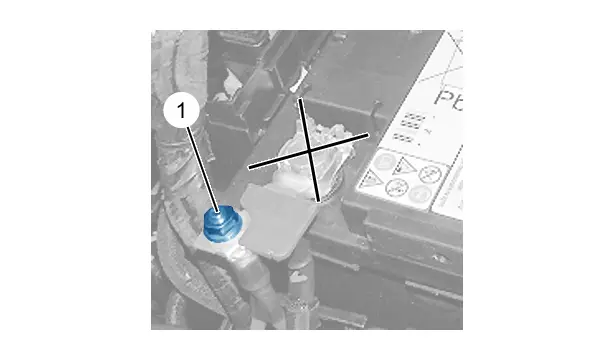

6.2. Vehicles equipped with a quickfit clip secured on the positive terminal (With studs)

CAUTION : Never connect the red clip from the battery tester on the locking cap (3). Connect the red clip of the battery tester on the stud (2).

N.B. : The contact surface between the extremity of the locking cap (3) and the terminal of the ancillaries battery is too weak to be able to transmit the parameters to the "MIDTRONICS" battery tester. In this case, the measurement from the "MIDTRONICS" battery tester could lead you to recharge the ancillaries battery unjustifiably.

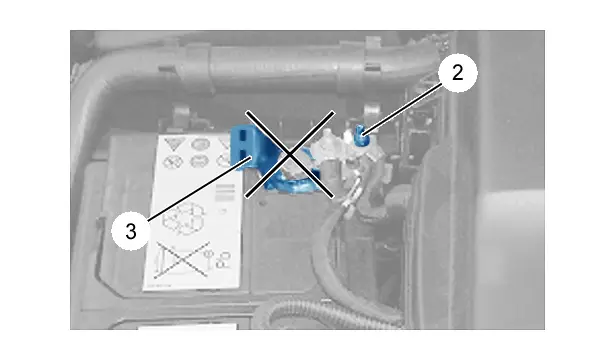

6.3. Vehicles equipped with a quickfit clip secured on the positive terminal (Without studs)

CAUTION : Never connect the red clip from the battery tester on the locking cap (3). Connect the red clip of the "MIDTRONICS" battery tester on the metal component (4) close to the ancillaries battery terminals, as close as possible to the crimping of the power wire.

N.B. : The weakness of the contact surface close to the locking cap (3) could lead you to recharge the ancillaries battery unjustifiably.

6.4. Vehicles without a battery charge status control unit on the negative terminal

CAUTION : Connect the black clip of the battery tester on a metal component (1) close to the ancillaries battery terminals, as close as possible to the crimping of the power wire.

6.5. Vehicles having a battery charge status control unit on the negative terminal

CAUTION : Never connect the black clip of the "MIDTRONICS" battery tester to the earth cable carrier crimped to the outlet of the battery charge status control unit (5) (at "a") (The "MIDTRONICS" tester if connected on the lug "a" activates the battery charge status control unit and the current consumed by the latter results in a tester diagnosis error) . Connect the black clip of the battery tester at the terminal "b" entering the battery charge status control unit (5).

N.B. : The electrical resistance of the battery charge status control unit (5) influences the measuring action of the battery tester. In this case the measurement by the battery tester could cause you to perform a battery recharge needlessly.

7. Location of measurement points

Select the bleed menu: "Location test".

Location of measurement points	Definitions	Technical justification
Ancillaries battery recharging terminals	The black clip is connected to the remote earth under the bonnet. The red clip is connected on the ancillaries battery positive terminal (In compliance with the procedure indicated in the user precautions)	Negative terminal of the ancillaries battery inaccessible
	The red clip is connected to the remote positive terminal under the bonnet. The black clip is connected to the remote earth under the bonnet	The ancillaries battery is difficult to access as a result of being located in the boot or under the seat
Ancillaries battery terminals	The 2 clips are connected directly on the ancillaries battery terminals

8. Presentation of the Aftersales/Parts label

Types of Service and Parts labels / Manufacturer’s label (According to version)

Illustration	Remarks
	First possibility
	Second possibility
	Third possibility
	Fourth possibility

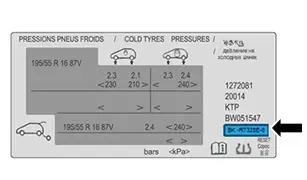

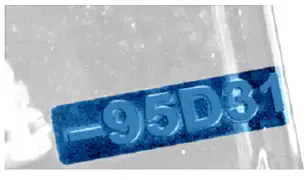

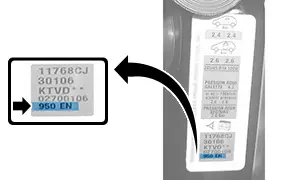

Enter the amperage, the part number of the ancillaries battery according to the battery standard or the ancillaries battery type coding encoded sequence.

N.B. : Refer to the method : Aftersales replacement parts label.

9. Test of the ancillaries battery in the vehicle, using the auto-configuration number

N.B. : Only applicable for vehicles which have an auto-configuration number on the Aftersales/Parts label.

N.B. : BK code : Auto-configuration number.

CAUTION : The accumulators of the "MIDTRONICS" battery tester should be charged up to avoid any risk of cut-off and the test being lost.

When the measurement of temperature is requested, position the battery tester 5 cm away from the ancillaries battery and do the temperature measurement.

N.B. : The illustrations below are presented with selection of the language given in French.

N.B. : To limit the risk of inputting errors and unnecessary movements, begin the operation near the Aftersales/Parts label.

Illustration	Operation and description

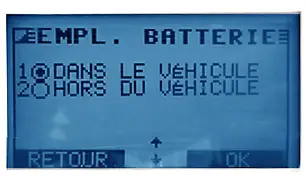

	On the ancillaries battery location menu "BATTERY LOC."Select "IN THE VEHICLE" (******)Confirm by pressing "OK"

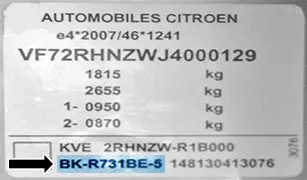

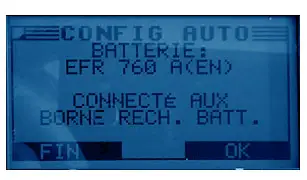

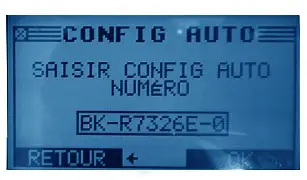

	Using the auto-configuration number on the Aftersales/Parts labelEnter the number "BK-XXXXXX-X" on the "AUTO CONFIG" menuConfirm by pressing "OK"
	Connect the tester to the charging terminals or to the terminals of the ancillaries battery according to the indication given by testerStart the ancillaries battery test by pressing "OK"

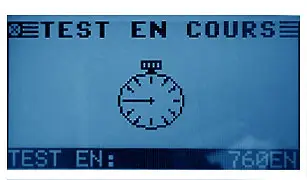

	Display of the message : Test in progress

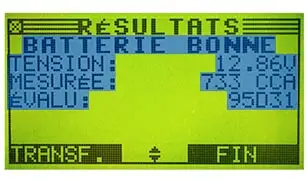

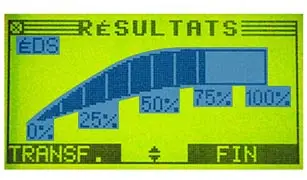

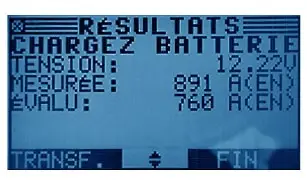

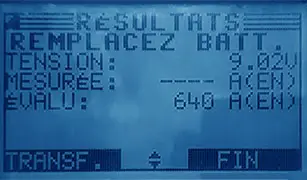

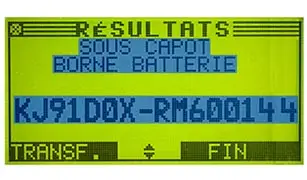

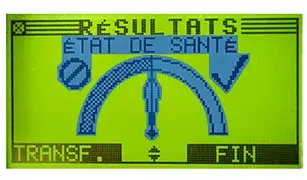

	Results of the test and display of the values measured

N.B. : (******) Navigation through the menus is by means of the direction arrows.

10. Test of the ancillaries battery in the vehicle without auto-configuration number

CAUTION : Only applicable for vehicles which do not have an auto-configuration number.

10.1. Identification of the ancillaries battery type

CAUTION : Only applicable for vehicles which do not have an auto-configuration number.

Select the menu "Battery type".

10.2. Identification of the ancillaries battery norm

CAUTION : Only applicable for vehicles which do not have an auto-configuration number.

Select the menu "Norm".

10.3. Identification of the ancillaries battery power

CAUTION : Only applicable for vehicles which do not have an auto-configuration number.

CAUTION : Take account of the EN norm amperage, not the PSA amperage.

Indication of the amperage of the battery or battery reference according to the norm

Illustration	standard	Description

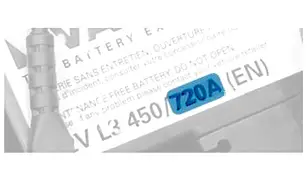

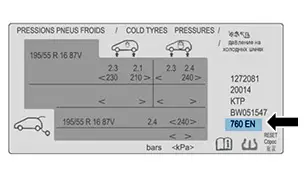

	Norm EN	Amperage written on the battery labelExample : 450 = PSA current720 A = Norm EN current
	Norm JIS	Reference marked on the batteryExample : 95D31

Enter the amperage, the part number of the ancillaries battery according to the battery standard.

10.4. Ancillaries battery test

Confirm the starting of the test with a press on the "OK" button.

When the measurement of temperature is requested, position the battery tester 5 cm away from the ancillaries battery and do the temperature measurement.

11. Battery test results

N.B. : The illustrations below are presented with selection of the language given in French.

11.1. Actions recommended depending on the result displayed on the "MIDTRONICS" battery tester

Results	Action to be carried out
BATTERY OK	-
CHARGE THE BATTERY	Recharge the battery
CHARGE AND TEST AGAIN	Charge the battery and restart the test
REPLACE THE BATTERY	Test the new ancillaries battery away from the vehicleReplace the battery
SHORT-CIRCUIT	Test the new ancillaries battery away from the vehicleReplace the battery
BATTERY FROZEN	Leave the ancillaries battery to thawDo not charge the ancillaries batteryRepeat the test

11.2. Result screens

11.2.1Battery conforms.

The result of the testing of the ancillaries battery is displayed on the screen in 4 windows that can be accessed via the direction arrows available on the keypad of the "MIDTRONICS" battery tester.

Result screens	Interpretation
	Results of the test and display of the values measured
	General state of the battery and capacity to produce the performance specified in relation to a new battery
	Graphic representing the general state of the battery
	Test code enabling traceability and monitoring by warranty

11.2.2Battery flat or to be replaced.

Result screens	Interpretation
	Battery test results : "Charge the battery "

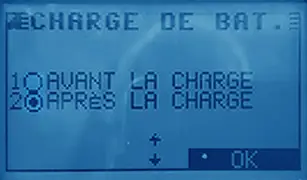

	After recharging the battery : - Select : "After charging " - Restart the test
	If the battery is faulty, the message "replace battery" is displayed - Replace the battery - Test the new battery

12. Transfer of the results to the printer

Illustration	Operation and description

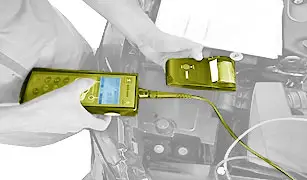

	Set up the printerCheck that the "STATUS" indicator lamp comes on
	Press the "TRANSF." button to start printing the "Test report"Check the alignment between the tester and the printer (infrared connection)

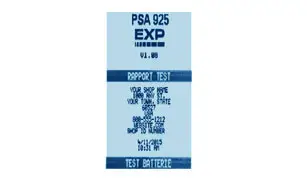

	Take the "Test report" off the printerCheck that the version indicated on the "Test report" is indeed V1.09

13. Transfer of the results into the diagnostic tool

N.B. : The automatic retrieval of the "MIDTRONICS" battery tester result function is only available on the "new vehicle preparation" menu and on the "battery" menu.

When the "MIDTRONICS" battery tester displays the result of the check :

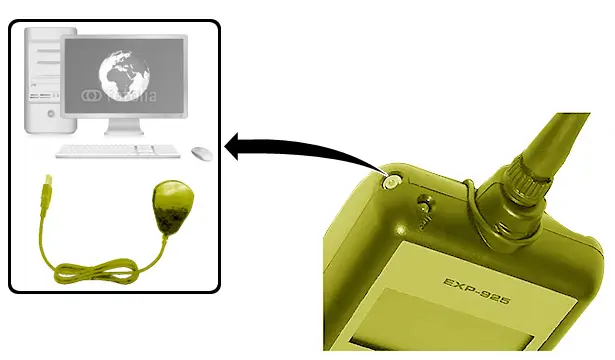

• Connect the USB/infrared link to the DIAGBOX diagnostic tool ("MIDTRONICS" battery tester kit)
• Direct the "MIDTRONICS" battery tester to the USB/infrared link

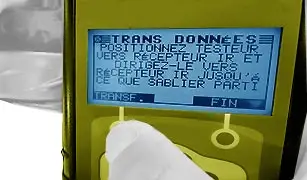

• Press 2 times on the "TRANSF" button ( battery tester)
• Follow the instructions given in the diagnostic tool

14. Retrieval of the results in the diagnostic tool

N.B. : If replacing the DIAGBOX diagnostic tool, keep a back-up of the "New Vehicle Preparation (PDI)" dossier.

The records of ancillaries battery checks, transferred into the diagnostic tool DIAGBOX, can be retrieved in the "New Vehicle Preparation" report which is memorised automatically via the diagnostic tool into the dossier c:\OUD\traces.
