Peugeot 308: Removing - refitting : Lateral acceleration sensor

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

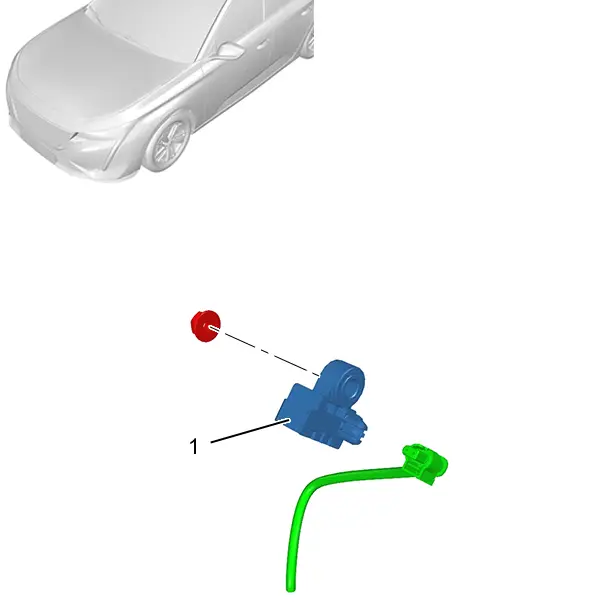

1. Location

2. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment) .

Remove :

• The centre pillar ‎ upper trim ‎
• The front door sill trim

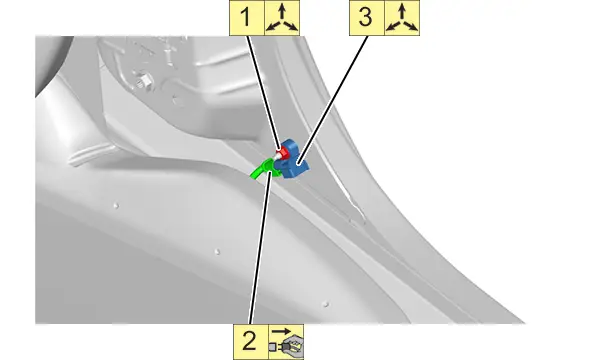

3. Removing

4. Refitting

CAUTION : Observe the tightening torques .

Proceed in the reverse order to removal.

Refit :

• The front door sill trim
• The centre pillar ‎ upper trim ‎

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment) .

5. Check

Check the operation of the various equipment.
