Peugeot 308: Tightening torques : Passenger compartment

Peugeot 308 2021-2025 (P5) Service Manual / Mechanical :: Steering / Steering wheel and steering wheel controls / Tightening torques : Passenger compartment

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

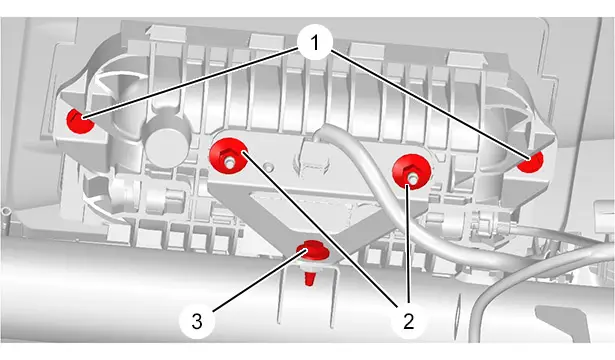

1. Passenger airbag

Identification	Description	Tightening torque
(1)	Bolt (Passenger airbag )	0,4 daNm
(2)	Nuts (Passenger airbag support / Passenger airbag )	0,4 daNm
(3)	Bolt (Passenger airbag support / Dashboard crossmember)	0,4 daNm

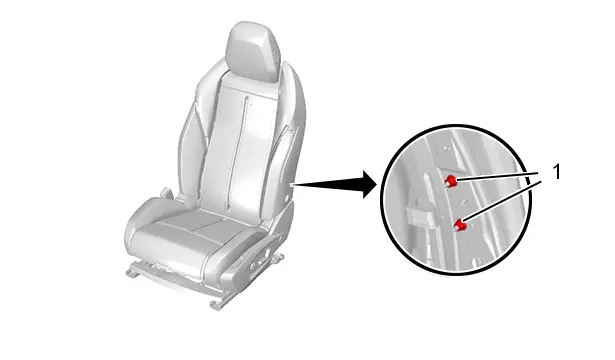

2. Side airbag

Identification	Description	Tightening torque
(1)	Nuts (Side airbag / Front seat back)	0,8 daNm

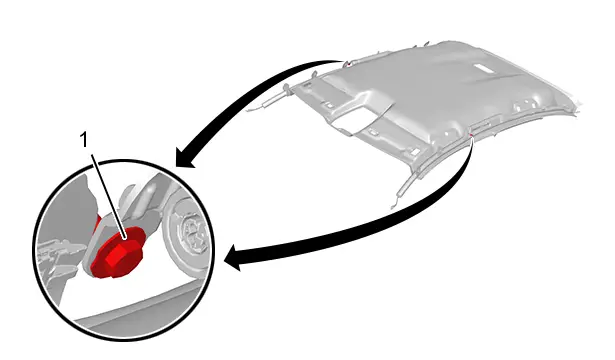

3. Roof side airbag

Identification	Description	Tightening torque
(1)	Bolt (Roof side airbag / Roof panel)	0,8 daNm

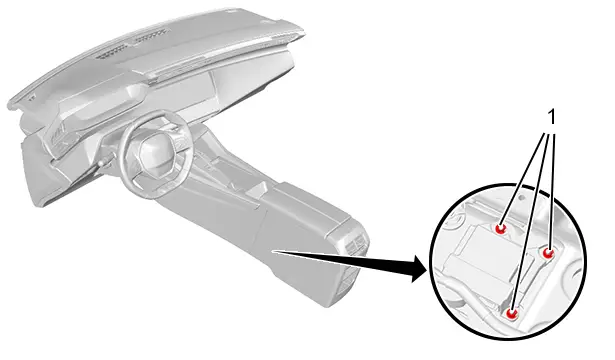

4. Airbags and pretensioners ECU

Identification	Description	Tightening torque
(1)	Nuts (Airbags and pretensioners ECU / Hands-free kit unit support )	0,8 daNm

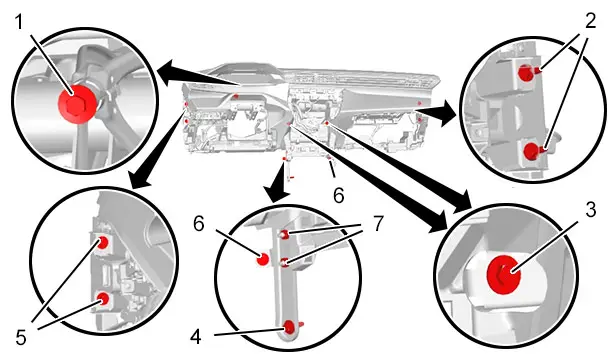

5. Dashboard

Identification	Description	Tightening torque
(1)	Bolt (Dashboard / Upper bulkhead)	2 daNm
(2)	Bolt (Dashboard / Dashboard crossmember)	2 daNm
(3)	Bolt (Dashboard / Heating unit )	2 daNm
(4)	Bolt (Dashboard / Dashboard crossmember)	2 daNm
(5)	Bolt (Dashboard / Dashboard crossmember)	2 daNm
(6)	Bolt (Dashboard / Heating unit )	2 daNm
(7)	Nuts (Dashboard / Dashboard crossmember)	2 daNm
