Peugeot 308: Tightening torques : Rear suspension

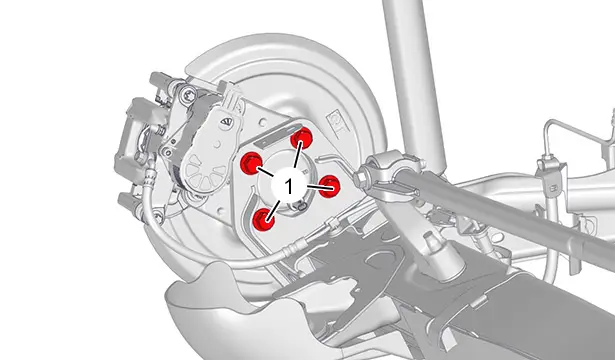

1. Rear hub : Disc brake
CAUTION : The "Low Friction" bolts (or nuts) (1) are only for single use and must always be replaced. All re-use is prohibited (risk of breakage). The bolts (or nuts) removed must be thrown away.
| Marking | Description | Tightening torque |
| (1) | bolts (Rear hub / Rear crossmember) (*) | 11,5 daNm |
| (*) Always to be replaced whenever removed | ||

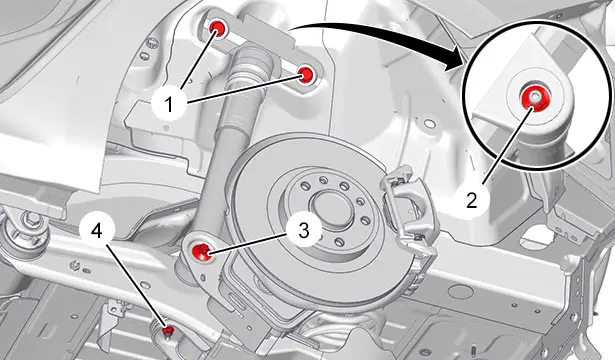

2. Rear shock absorber
CAUTION : The "Low Friction" bolts (or nuts) (1), (2), (3), (4) are only for single use and must always be replaced. All re-use is prohibited (risk of breakage). The bolts (or nuts) removed must be thrown away.
| Identification | Description | Tightening torque |
| (1) | Bolt (Rear shock absorber / Body) (*) | 4 daNm |
| (2) | Nut (Rod (Rear shock absorber) / Upper support (Rear shock absorber) ) (*) | 4,5 daNm |
| (3) | Bolt (Rear shock absorber / Rear crossmember) (*) | 11,5 daNm |
| (4) | Nut (Bump stop / Rear crossmember) (*) | 2 daNm |
| (*) Always to be replaced whenever removed | ||

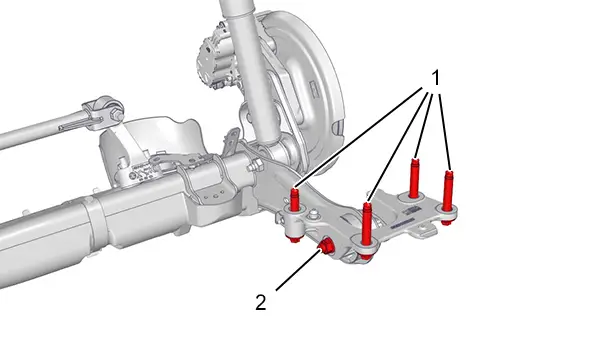

3. Crossmember
CAUTION : The "Low Friction" bolts (or nuts) (1), (2) are only for single use and must always be replaced. All re-use is prohibited (risk of breakage). The bolts (or nuts) removed must be thrown away.
| Marking | Description | Tightening torque |
| (1) | bolts (Rear suspension yoke / Body) (*) | 12 daNm |
| (2) | Bolt-nut assembly (Rear suspension yoke / Rear flexible mounting) (*) | 11,5 daNm |
| (*) Always to be replaced whenever removed | ||

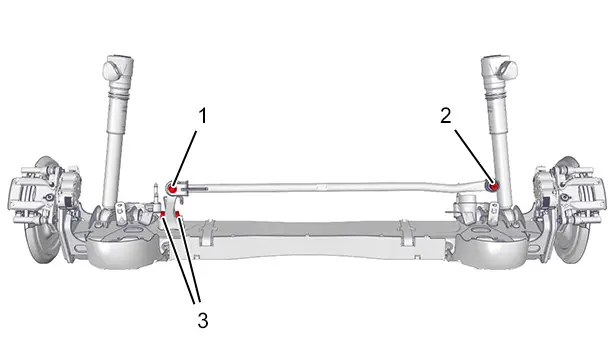

4. "PANHARD" type rear bar
CAUTION : The "Low Friction" bolts (or nuts) (2), (3) are only for single use and must always be replaced. All re-use is prohibited (risk of breakage). The bolts (or nuts) removed must be thrown away.
| Identification | Description | Tightening torque |
| (1) | bolts (Rear bar / Support (Rear bar) ) | 7 daNm |
| (2) | bolts (Rear bar / Body) (*) | 7 daNm |
| (3) | bolts (Support (Rear bar) / Rear suspension ) (*) | Pre-tightening to 16 daNm |
| Angular tightening to 45° | ||
| (*) Always to be replaced whenever removed | ||

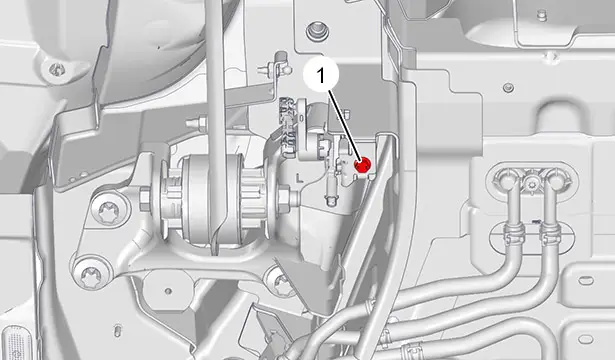

5. Rear body height sensor
| Marking | Description | Tightening torque |
| (1) | Bolt (Rear body height sensor / Body) | 0,8 daNm |
