Peugeot 308: Tightening torques : Electrical equipment (under bonnet)
1. Electric drive train supervisor ECU

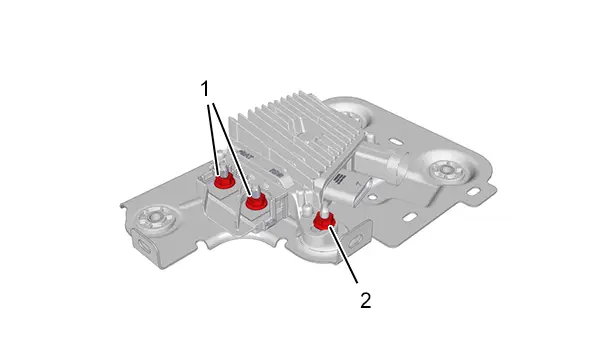

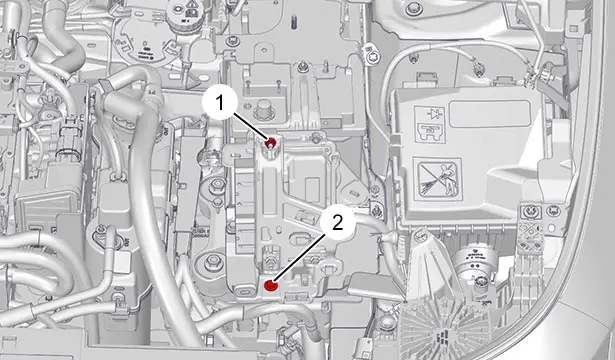

1.1. Electric drive train supervisor ECU support
| Marking | Description | Tightening torque |
| (1) | Nuts (Electric drive train supervisor ECU support / Electric drive train supervisor ECU) | 0,8 daNm |
| (2) | Bolt (Electric drive train supervisor ECU support / Ancillaries battery support) | 0,8 daNm |

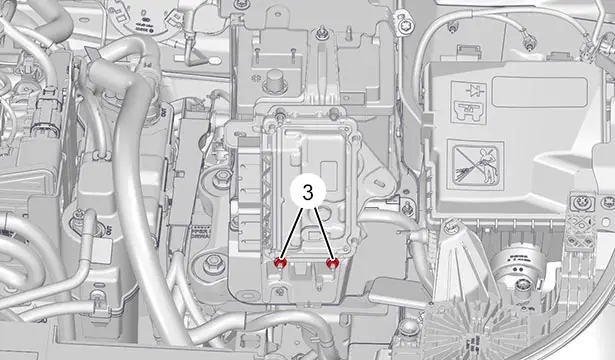

1.2. Electric drive train supervisor ECU
| Marking | Description | Tightening torque |
| (3) | Nuts (Electric drive train supervisor ECU / Electric drive train supervisor ECU support) | 0,8 daNm |

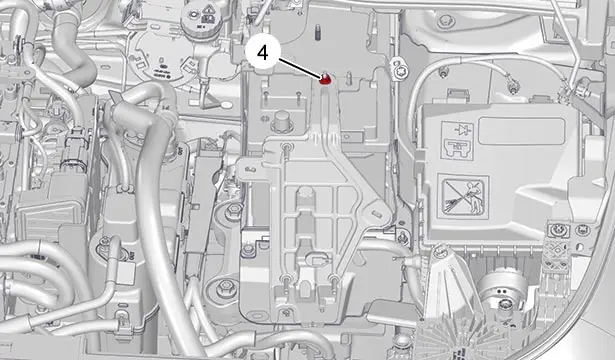

1.3. Electric drive train supervisor ECU support
| Marking | Description | Tightening torque |
| (4) | Nuts (Electric drive train supervisor ECU support / Ancillaries battery 1 support) | 0,8 daNm |
2. Ancillaries battery 1

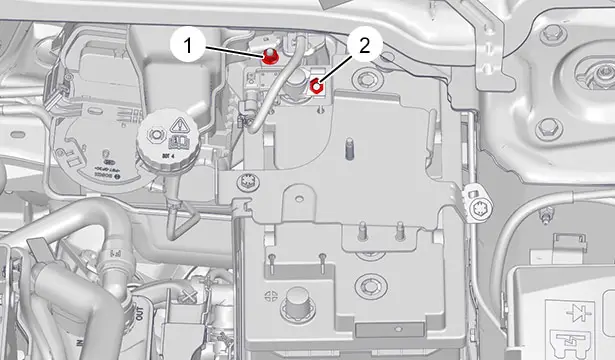

2.1. Battery charge status unit / Ancillaries battery 1 negative cable
| Marking | Description | Tightening torque |
| (1) | Nut (Battery charge status unit / Ancillaries battery 1) | 0,8 daNm |
| (2) | Nut (Battery charge status unit / Ancillaries battery 1) | 0,8 daNm |

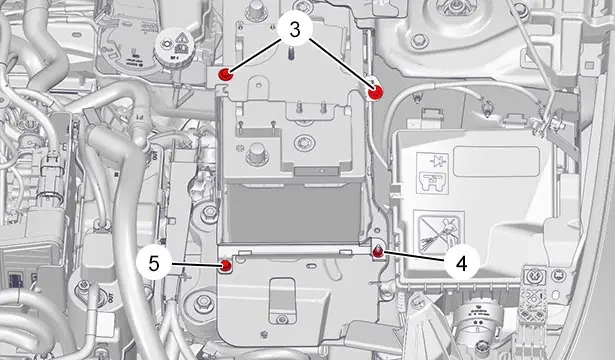

2.2. Ancillaries battery 1 fixing
| Marking | Description | Tightening torque |
| (3) | Bolt (Ancillaries battery 1 retaining clamp / Ancillaries battery 1 support) | 0,8 daNm |
| (4) | Nut (Ancillaries battery 1 retaining clamp / Ancillaries battery 1 support) | 0,8 daNm |
| (5) | Bolt (Ancillaries battery 1 retaining clamp / Ancillaries battery 1 support) | 0,8 daNm |

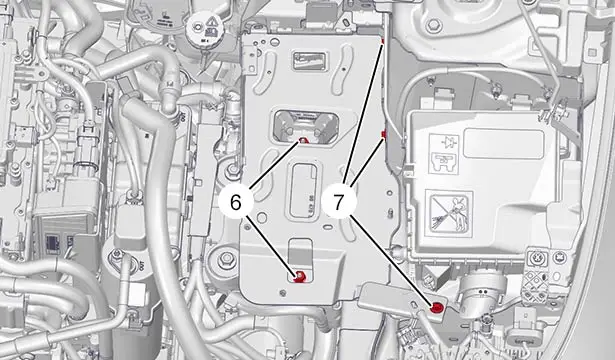

2.3. Ancillaries battery 1 support
| Marking | Description | Tightening torque |
| (6) | Nuts (Ancillaries battery 1 support / Chassis leg) | 6 daNm |
| (7) | Bolt (Ancillaries battery 1 support / Body) | 0,8 daNm |

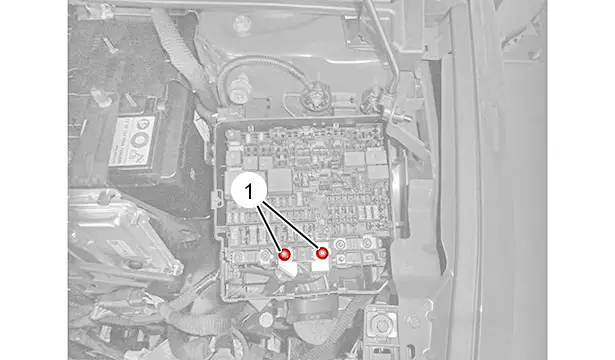

3. Engine fuse and relay box
| Marking | Description | Tightening torque |
| (1) | Nut (Ancillaries battery positive cable / Engine fuse and relay box) | 0,8 daNm |
| (2) | Nut (Ancillaries battery positive cable / Engine fuse and relay box) | 0,5 daNm |
4. Earth points

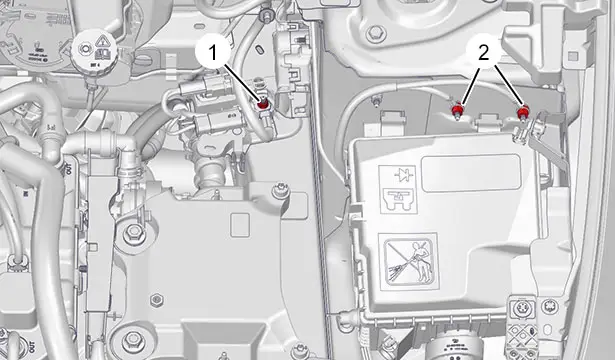

4.1. Engine compartment (left-hand side)
| Marking | Description | Tightening torque |
| (1) | Nut (Earth cable / Body) (*) | 1 daNm |
| (2) | Nuts (Earth cable / Body) (*) | 1 daNm |
| (*) Always replace the nuts and the bolts on each removal | ||
N.B. : The number of earth points varies according to the level of equipment.

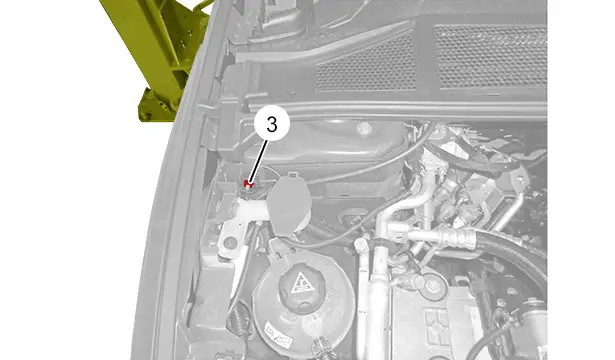

4.2. Engine compartment (right-hand side)
| Marking | Description | Tightening torque |
| (3) | Nut (Earth cable / Body) (*) | 1 daNm |
| (*) Always replace the nuts and the bolts on each removal | ||
5. Ancillaries battery 2 switch
| Marking | Description | Tightening torque |
| (1) | Nut (Ancillaries battery 2 positive cable / Ancillaries battery 2 switch) (*) | 0,8 daNm |
| (2) | Nut (Ancillaries battery 2 switch / Ancillaries battery 2 switch support) | 0,8 daNm |
| (*) Always replace the nuts whenever they are removed | ||
6. Ancillaries battery 2
6.1. Ancillaries battery 2 positive and negative cables
| Marking | Description | Tightening torque |
| (1) | Bolt (Positive cable / Ancillaries battery 2) (*) | 0,8 daNm |
| (2) | Bolt (Negative terminal / Ancillaries battery 2) | 0,8 daNm |
| (*) Always replace the nuts whenever they are removed | ||
6.2. Ancillaries battery fixing 2
| Marking | Description | Tightening torque |
| (1) | Bolt (Ancillaries battery 2 retaining clamp / Ancillaries battery 2) (*) | 0,8 daNm |
| (2) | Nuts (Ancillaries battery 2 support / Body) | 0,8 daNm |
| (*) Always replace the nuts whenever they are removed | ||
