Peugeot 308: Tightening torques : Pedal bracket
Peugeot 308 2021-2025 (P5) Service Manual / Mechanical :: Engine / Air and fuel supply / Tightening torques : Pedal bracket
1. Left-hand drive pedal bracket

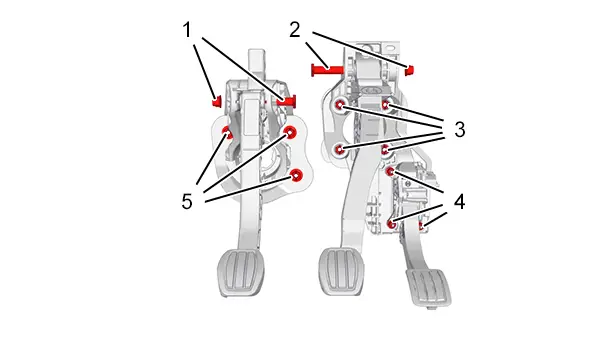

1.1. Vehicle with manual gearbox
| Identification | Description | Tightening torque |
| (1) | Bolt-nut assembly (Clutch pedal / Support ) (*) | 1,7 daNm |
| (2) | Bolt-nut assembly (Brake pedal / Support ) (*) | 1,7 daNm |
| (3) | Nuts (Support / Bulkhead) (*) | 2 daNm |
| (4) | Nuts (Accelerator pedal) (*) | 0,8 daNm |
| (5) | Nuts (Support / Bulkhead) (*) | 2 daNm |
| (*) Always to be replaced whenever removed | ||

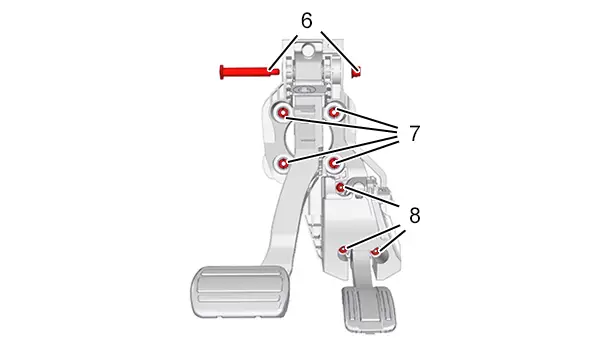

1.2. Vehicle fitted with automatic gearbox
| Identification | Description | Tightening torque |
| (6) | Bolt-nut assembly(Brake pedal / Support ) | 1,7 daNm |
| (7) | Nuts (Support / Bulkhead) (*) | 2 daNm |
| (8) | Nuts (Accelerator pedal) (*) | 0,8 daNm |
| (*) Always to be replaced whenever removed | ||
2. Right-hand drive pedal assembly

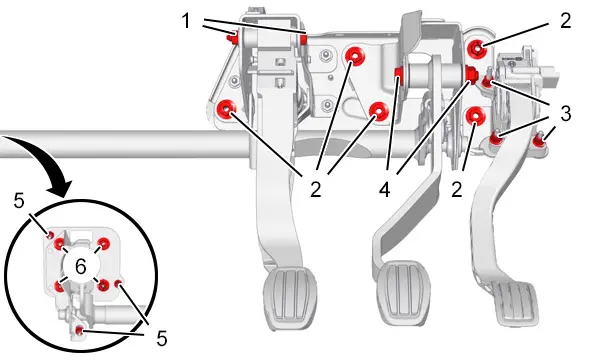

2.1. Vehicle with manual gearbox
| Identification | Description | Tightening torque |
| (1) | Bolt-nut assembly (Clutch pedal / Support ) (*) | 1,7 daNm |
| (2) | Nuts (Support / Bulkhead) | 2 daNm |
| (3) | Nuts (Accelerator pedal) (*) | 0,8 daNm |
| (4) | Bolt-nut assembly (Brake pedal / Support ) (*) | 5 daNm |
| (5) | Nuts (Protector / Support ) | 0,8 daNm |
| (6) | Nuts (Support / Bulkhead) | 2 daNm |
| (*) Always to be replaced whenever removed | ||

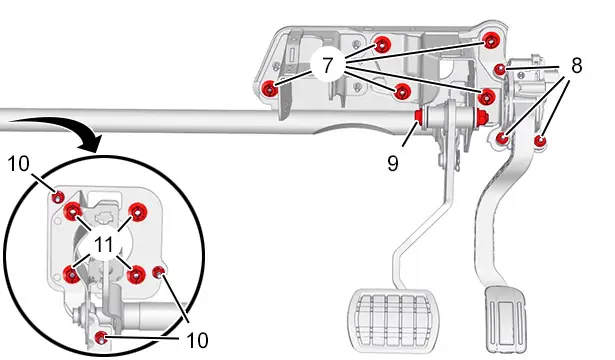

2.2. Vehicle fitted with automatic gearbox
| Identification | Description | Tightening torque |
| (7) | Nuts (Support / Bulkhead) (*) | 2 daNm |
| (8) | Nuts (Accelerator pedal) (*) | 0,8 daNm |
| (9) | Bolt-nut assembly (Brake pedal / Support ) (*) | 5 daNm |
| (10) | Nuts (Protector / Support ) | 0,8 daNm |
| (11) | Nuts (Support / Bulkhead) (*) | 2 daNm |
| (*) Always to be replaced whenever removed | ||
