Peugeot 308: Tightening torques : Pedal bracket (left-hand drive)
Peugeot 308 2021-2025 (P5) Service Manual / Mechanical :: Engine / Air and fuel supply / Tightening torques : Pedal bracket (left-hand drive)

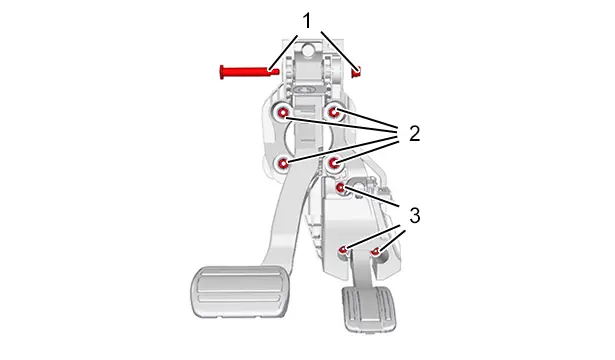

1. Left-hand drive pedal bracket
| Identification | Description | Tightening torque |
| (1) | Bolt-nut assembly (Brake pedal / Pedal bracket) (*) | 1,7 daNm |
| (2) | Nuts(Pedal bracket / Bulkhead) (*) | 2 daNm |
| (3) | Nuts (Accelerator pedal/Pedal bracket) (*) | 0,8 daNm |
| (*) Always to be replaced whenever removed | ||

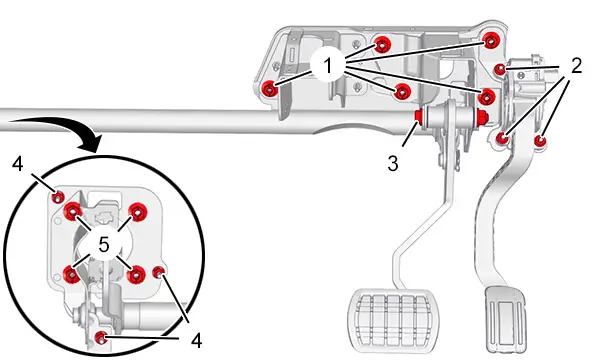

2. Right-hand drive pedal assembly
| Identification | Description | Tightening torque |
| (1) | Nuts (Pedal bracket / Bulkhead) (*) | 2 daNm |
| (2) | Nuts (Accelerator pedal) (*) | 0,8 daNm |
| (3) | Bolt-nut assembly (Brake pedal / Pedal bracket) (*) | 2,5 daNm |
| (4) | Nuts (Protector / Support ) (*) | 0,8 daNm |
| (5) | Nuts (Support / Bulkhead) (*) | 2 daNm |
| (*) Always to be replaced whenever removed | ||
