Peugeot 308: Tightening torques : Pedal bracket (right-hand drive)
Peugeot 308 2021-2025 (P5) Service Manual / Mechanical :: Engine / Air and fuel supply / Tightening torques : Pedal bracket (right-hand drive)

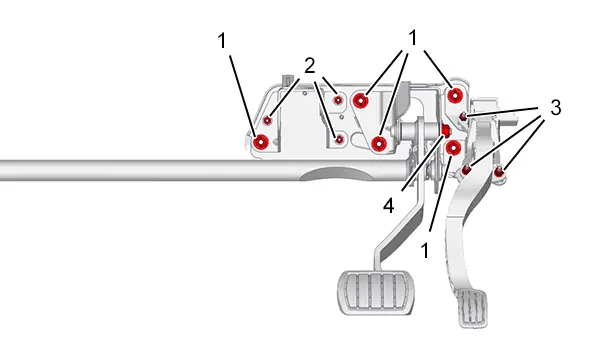

1. Right-hand drive pedal assembly (right-hand side)
| Reference | Description | Tightening torque |
| (1) | Nuts (Support / Bulkhead) (*) | 2 daNm |
| (2) | Nuts (Protector / Support ) (*) | 0,8 daNm |
| (3) | Nuts (Accelerator pedal) (*) | 0,8 daNm |
| (4) | Bolt-nut assembly (Brake pedal / Pedal bracket) (*) | 2 daNm |
| (*) Always to be replaced whenever removed | ||

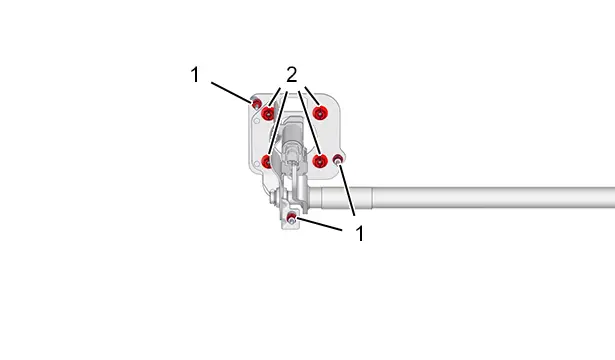

2. Right-hand drive pedal assembly (left-hand side)
| Reference | Description | Tightening torque |
| (1) | Nuts (Protector / Support ) (*) | 0,8 daNm |
| (2) | Nuts (Support / Bulkhead) (*) | 2 daNm |
| (*) Always to be replaced whenever removed | ||
