Peugeot 308: Removing - refitting : Sequential gear lever

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

1. Tooling

2. Preliminary operation

CAUTION : Perform the operations that are required before disconnecting the ancillaries batteries .

Disconnect the ancillaries batteries .

3. Removing

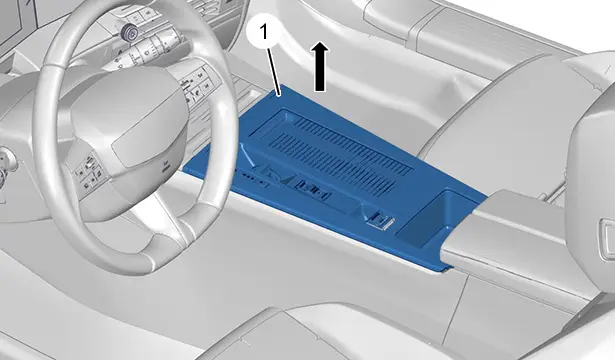

Remove the console (1);Using the tool [1350-ZZ] (In the direction of the arrow ).

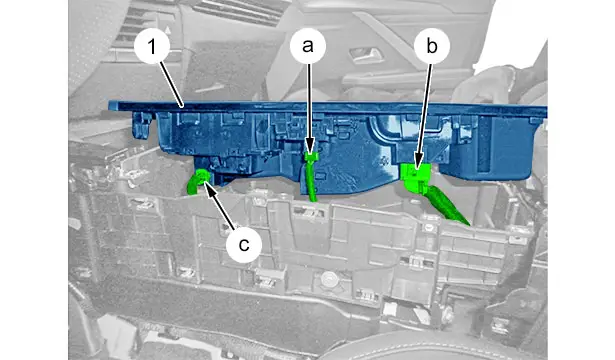

Disconnect the connectors(at "a","b","c").

Remove the console (1).

N.B. : Operations to be carried out on the bench.

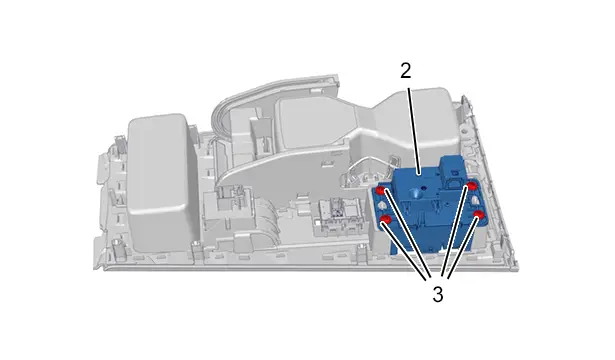

Remove :

• The 4 bolts (3)
• The sequential gear lever (2)

4. Refitting

Refit :

• The sequential gear lever (2)
• The 4 bolts (3)
• The console (1)

Reconnect the connectors (at "a","b","c").

5. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries batteries .

Reconnect the ancillaries batteries .

Check the operation of the various equipment.
