ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : Only use insulated pliers to carry out the operations.

Park mode is a function that saves battery power consumption while the vehicle is on a park, by deactivating some of the vehicle’s equipment.

CAUTION : The vehicle has to be handed over to the customer in "customer mode" (Configuration for normal usage ).

CAUTION : When the shunt is in the park position : It is necessary to press the clutch pedal in order to start the engine(depending on the BSI version).

N.B. : Depending on the vehicle, the removable shunts and fuses are found either in the dashboard storage compartment , in the ashtray , in the front left-hand door storage compartment or in reserve in the fuse box .

1. Special feature on vehicles equipped with the emergency call and assistance call functions

Vehicles fitted with emergency and assistance call buttons :

  • After configuration to customer mode
  • Switch on the ignition
  • Wait 5 seconds
  • Check that the "SOS" LED on the emergency call button is not lit in red (Permanent or flashing )

N.B. : If the "SOS" LED on the emergency call button is lit in red or if it is not lit, mention this on the "new vehicle preparation check-list".

2. Location and repair

308 (P5).

408 (P54) - 408 Malaysia (P54C).

408 X China (P54C).

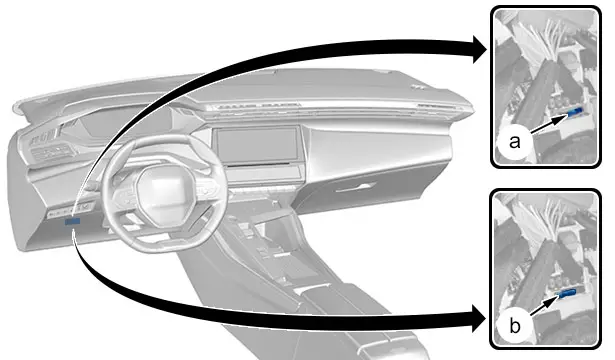

"a" Transit configuration.

"b" Customer configuration.

ESSENTIAL : An incorrect positioning of the shunt in customer configuration may risk a disconnection of the shunt during driving.

CAUTION : The position of the shunt on a (VSM1) built-in systems interface is reversed in relation to a (BSI1) built-in systems interface.

Method of operation :

  • Position the vehicle in a suitable spot
  • Open the front LH door and decoy the electrical system by manually closing the catch of the door lock
  • Check that the vehicle’s other doors are closed
  • Remove the flap to access the fuses
  • Check that the ignition is switched off and remove the key
  • Check that nothing is connected on the diagnostic socket

CAUTION : Wait 4 minutes without actioning any electrical equipment.

Method of operation(continued) :

  • Remove the shunt from the park position "a"
  • Wait 15 seconds
  • Place the shunt in the customer position "b" ; Using insulation pliers
  • Press simultaneously on both extremities of the shunt ; Using insulation pliers
  • Check that the shunt is correctly in position, using suitable lighting
  • Reposition the catch of the door lock
  • Switch the ignition back on
  • Wait for one second
  • Switch off the ignition
  • Refit the fuse access flap
  • Check that the fuse access flap is flush
