Peugeot 308: Updating procedure : Software update via OTA (Over The Air) without the diagnostic tool
ESSENTIAL : Observe the safety and cleanliness recommendations
.
1. Workshop documentation required
MY DSP bulletins
| Description | Link |
| "Workshop Wi-Fi recommendation" | http://zap.inetpsa.com/17/index.php?pg=vnot&n=1501 |
| "Upgrade of the Internet speed in the workshop" | http : //zap.inetpsa.com/17/index.php?pg=vnot&n=1515 |
Check - recharge : Ancillaries battery
.
2. Information on carrying out the procedure
The procedure requires the following operations to be carried out in the correct order :
- A check of the vehicle’s 4G network coverage
- The download and installation of the radio frequency connectivity box (BSRF / RTBM) software(*)
- The download and installation of the IVI audio-navigation system/IVI connected audio system ECU software(*)
- A check that the vehicle operates correctly following the repair
N.B. : (*) : The radio frequency connectivity box (BSRF / RTBM) and the IVI audio-navigation system/IVI connected audio system ECU software downloads can be completed in the reverse order.
3. Important instructions for carrying out the procedure
CAUTION : Failure to do so will result in the failure of the operation and the immobilisation of the vehicle.
3.1. Instructions related to the vehicle
Park the vehicle outside for optimum 4G signal reception.
Do not switch off the internal combustion engine during the operation, except where requested.
Do not move the vehicle once the repair has started.
Do not connect the DIAGBOX diagnostic tool if not requested to do so.
For hybrid vehicles, disconnect the charging cable from the charging socket unit.
The new vehicle preparation must be carried out if the vehicle is equipped with keyless entry and starting, place the hands-free identifier in the electronic key reader or in the central storage compartment.
CAUTION : During vehicle update procedures, a Wi-Fi connection may be requested even if the 4G network connection is active. In this case, wait 3 minutes for the vehicle to switch back to the 4G network connection.
3.2. Instructions related to the workstation
Apply the MY DSP procedure.
MY DSP bulletins
| Description | Link |
| "Workshop Wi-Fi recommendation" | http://zap.inetpsa.com/17/index.php?pg=vnot&n=1501 |
| "Upgrade of the Internet speed in the workshop" | http : //zap.inetpsa.com/17/index.php?pg=vnot&n=1515 |
3.3. Workshop Internet connectivity recommendations
| Prerequisite | Information |
| Internet speed | 54 Mbits/sec. |
| Internet access | Internet access and browsing must be direct (no user name/password authentication to a captive portal or proxy server) |
| Wi-Fi standard | The Wi-Fi access point must comply with the 802.11ac standard |
| Wi-Fi authentication | The Wi-Fi access point requires WPA2_PSK protection |
| Authentication | - SSDI (Network name) : Between 1 and 12 characters- Password : Between 8 and 21 charactersPlease note : The number of characters for the SSID and the password is to be observed, checked and modified in the router if necessary |
| IP | IPV4 is the only compatible protocol (check and modify in the router if necessary) |
| Installation recommendation | The Wi-Fi transmission point must be near to the area where the downloads are carried out; it must be installed near to a parking space or a workstation on the ground so that the vehicle can be parked without disrupting the traffic flow within the workshop |
4. Bringing the vehicle to the required condition
4.1. Check of the 4G network coverage
| Illustration | Procedure |
| Start the vehicle and let the internal combustion engine run during the procedure |

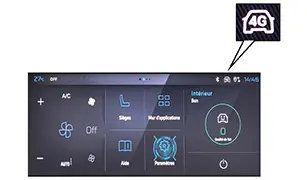

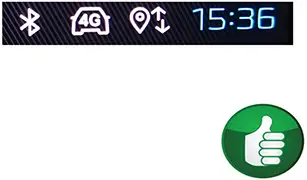

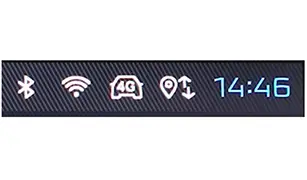

| Check for the 4G logo |
| The 4G logo is presentGo to stage 5 - First download and installation of the radio frequency connectivity box (BSRF / RTBM) update and of the IVI audio-navigation system/IVI connected audio system update |

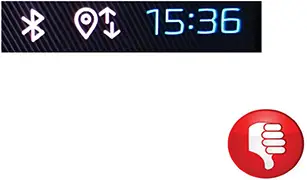

| The 4G logo is not presentGo to stage 4.2 - Activation of the vehicle’s Wi-Fi connection |
4.2. Activation of the vehicle’s Wi-Fi connection
CAUTION : If the vehicle is equipped with keyless entry and starting, place the hands-free identifier in the electronic key reader or in the central storage compartment.
If the 4G network coverage is not available, connect to the Wi-Fi via the multifunction screen.
N.B. : If unable to connect to the Wi-Fi WLANPSAR access point, refer to Item no. 34372 available in iSOLVE.
N.B. : The multifunction screen may be configured differently depending on the customer’s preferences.
| Illustration | Procedure |

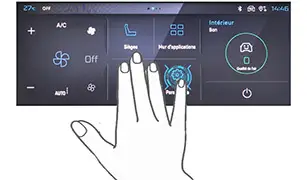

| Briefly place 3 fingers on the multifunction touch screen to display all of the menus (a "click" is heard) |
| Select the menu : Parameter |

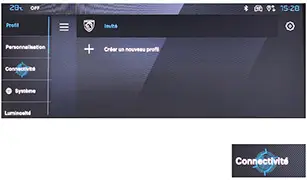

| Select the menu : Connectivity |

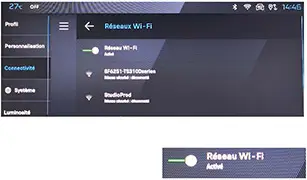

| Select the menu : Wi-Fi |

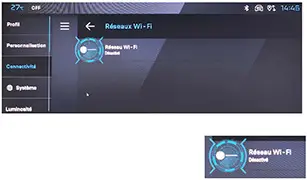

| Activate the Wi-Fi network |

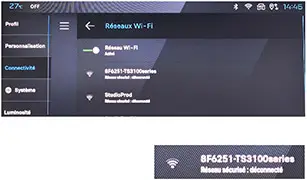

| Select an available Wi-Fi network |

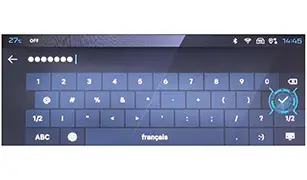

| Enter the password Confirm |
| The vehicle is connected to the Wi-Fi networkGo to stage 5 - First download and installation of the radio frequency connectivity box (BSRF / RTBM) update and of the IVI audio-navigation system/IVI connected audio system update |
5. First download and installation of the radio frequency connectivity box (BSRF / RTBM) update and of the IVI audio-navigation system/IVI connected audio system update
5.1. Retrieval of the update
CAUTION : During vehicle update procedures, a Wi-Fi connection may be requested even if the 4G network connection is active. In this case, wait 3 minutes for the vehicle to switch back to the 4G network connection.
CAUTION : Leave the engine running throughout the procedure to avoid going into economy mode : Switching to ECO mode during the procedure renders the IVI audio-navigation system/IVI connected audio system permanently unusable.
CAUTION : If the vehicle is equipped with keyless entry and starting, place the hands-free identifier in the electronic key reader or in the central storage compartment.
| Illustration | Procedure |
| Start the vehicle and let the internal combustion engine run during the procedure |

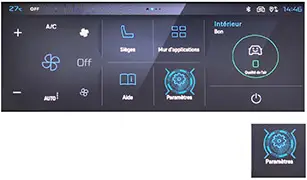

| Select the menu : Parameter |

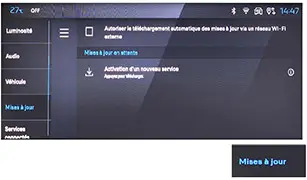

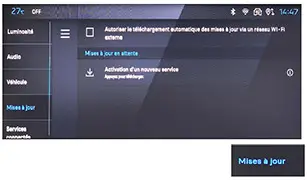

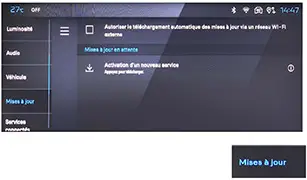

| Select the menu : Updates |
| The procedure may be longWait 5 minutes for the new software to be detected |

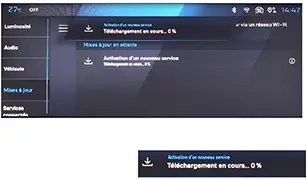

| Check the display of the download progress bar |

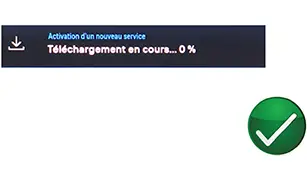

| If the download progress bar is displayed- Wait until the download is complete- Go to stage 5 - 3 - Installation of the vehicle update |

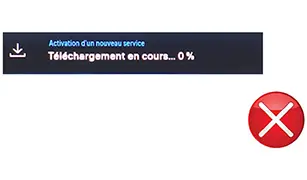

| If the download progress bar is not displayed- Go to stage 5 - 2 - Download of the vehicle update |
5.2. Download of the vehicle update
CAUTION : During vehicle update procedures, a Wi-Fi connection may be requested even if the 4G network connection is active. In this case, wait 3 minutes for the vehicle to switch back to the 4G network connection.
CAUTION : Leave the engine running throughout the procedure to avoid going into economy mode : Switching to ECO mode during the procedure renders the IVI audio-navigation system/IVI connected audio system permanently unusable.
CAUTION : If the vehicle is equipped with keyless entry and starting, place the hands-free identifier in the electronic key reader or in the central storage compartment.
| Illustration | Procedure |

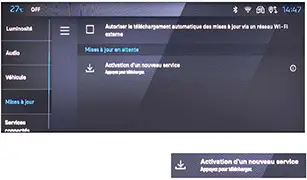

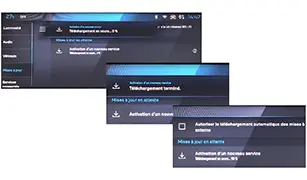

| Select the menu : "press to download"Note : The words "Activation of a new service" may not appear in some cases, this has no effect on the procedure |
| Wait until the download is completeThe download is complete when the message "Download complete" appears |
| If the installation of the new software does not start automatically - Wait for 1 minute - Go to stage 5 - 3 - Installation of the vehicle updateIf the installation of the new software starts automatically - Wait until the installation is complete - Go to stage 6 - Second download and installation of the radio frequency connectivity box (BSRF / RTBM) update and of the IVI audio-navigation system/IVI connected audio system update | |
5.3. Installation of the vehicle update
CAUTION : During vehicle update procedures, a Wi-Fi connection may be requested even if the 4G network connection is active. In this case, wait 3 minutes for the vehicle to switch back to the 4G network connection.
CAUTION : Check the condition of the front and rear ancillaries batteries as per the recommendations in the procedure
.
CAUTION : Connect an ancillaries battery charger as per the recommendations of procedure
.
CAUTION : If the vehicle is equipped with keyless entry and starting, place the hands-free identifier in the electronic key reader or in the central storage compartment.
| Illustration | Procedure |
| Switch off the ignitionPlease note : Driving is not possible during the installation of the updatePlease note : Once the procedure for installing the update has been started, it cannot be paused or cancelledPlease note : Do not do anything to the vehicle or disconnect the ancillaries battery while installing the update, even if the vehicle enters ECO mode or the multifunction screen turns black. This change is due to the installation of the new software and is normal |
| Wait 1 minute for the radio frequency connectivity box (BSRF / RTBM) to synchroniseNote : If the message "Update not possible while driving" appears ; Start the internal combustion engine, switch off the ignition and continue with the procedure |
| Select the menu : Parameter |
| Select the menu : update |

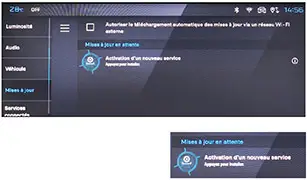

| Select the menu : "Press to install"Note : The words "Activation of a new service" may not appear in some cases, this has no effect on the procedure |

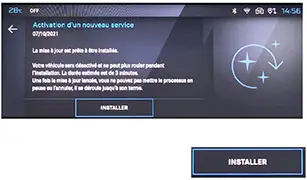

| Install the software |
| The installation of the software on the vehicle may take up to 20 minutes, do not carry out any work on the vehicle |

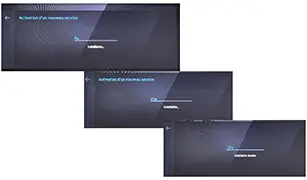

| The progress of the software installation on the vehicle is not linear, some screens may remain at the same progress level for several minutes (approximately 90% of the installation time is displayed at 25%) |

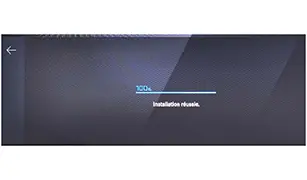

| The installation of the software is complete when the message "Installation successful" appearsGo to stage 6 - Second download and installation of the radio frequency connectivity box (BSRF / RTBM) update and of the IVI audio-navigation system/IVI connected audio system update |
| If the procedure fails, stops or crashes, repeat the procedure from stage 5 - First download and installation of the radio frequency connectivity box (BSRF / RTBM) update and of the IVI audio-navigation system/IVI connected audio system update |
N.B. : If the problems persist, contact the technical assistance platform through a dealer issue detection assistance (DID A) pre-classified as "Audio/Telematics/Telephone" and mention the usual information, the code of the campaign being carried out, the problem encountered and the VIN under "additional information on the customer symptom".
6. Second download and installation of the radio frequency connectivity box (BSRF / RTBM) update and of the IVI audio-navigation system/IVI connected audio system update
6.1. Bringing the vehicle to the required condition
Start the vehicle and let the internal combustion engine run for half an hour.
6.2. Switching of the vehicle to dormant mode
Switch off the ignition.
Close the doors and windows, lock the vehicle, move the hands-free identifier away from the vehicle and wait 5 minutes for the vehicle to become dormant.
6.3. Retrieval of the update
CAUTION : During vehicle update procedures, a Wi-Fi connection may be requested even if the 4G network connection is active. In this case, wait 3 minutes for the vehicle to switch back to the 4G network connection.
CAUTION : Leave the engine running throughout the procedure to avoid going into economy mode : Switching to ECO mode during the procedure renders the IVI audio-navigation system/IVI connected audio system permanently unusable.
CAUTION : If the vehicle is equipped with keyless entry and starting, place the hands-free identifier in the electronic key reader or in the central storage compartment.
| Illustration | Procedure |
| Start the vehicle and let the internal combustion engine run during the procedure |
| Select the menu : Parameter |
| Select the menu : update |
| The procedure may be longWait 5 minutes for the new software to be detected |
| Check the display of the download progress bar |
| If the download progress bar is displayed- Wait until the download is complete- Go to stage 6 - 5 - Installation of the vehicle update |
| If the download progress bar is not displayed- Go to stage 6 - 4 - Download of the vehicle update |
6.4. Download of the vehicle update
CAUTION : During vehicle update procedures, a Wi-Fi connection may be requested even if the 4G network connection is active. In this case, wait 3 minutes for the vehicle to switch back to the 4G network connection.
CAUTION : Leave the engine running throughout the procedure to avoid going into economy mode : Switching to ECO mode during the procedure renders the IVI audio-navigation system/IVI connected audio system permanently unusable.
CAUTION : If the vehicle is equipped with keyless entry and starting, place the hands-free identifier in the electronic key reader or in the central storage compartment.
| Illustration | Procedure |
| Select the menu : "press to download"Note : The words "Activation of a new service" may not appear in some cases, this has no effect on the procedure |
| Wait until the download is completeThe download is complete when the message "Download complete" appears |
| If the installation of the new software does not start automatically | Wait for 1 minuteGo to stage 6 - 5 - Installation of the vehicle update |
| If the installation of the new software starts automatically | Wait until the installation is completeGo to stage 7 - Check after repair |
6.5. Installation of the vehicle update
CAUTION : During vehicle update procedures, a Wi-Fi connection may be requested even if the 4G network connection is active. In this case, wait 3 minutes for the vehicle to switch back to the 4G network connection.
CAUTION : Check the condition of the front and rear ancillaries batteries as per the recommendations in the procedure
.
CAUTION : Connect an ancillaries battery charger as per the recommendations of procedure
.
CAUTION : If the vehicle is equipped with keyless entry and starting, place the hands-free identifier in the electronic key reader or in the central storage compartment.
| Illustration | Procedure |
| Switch off the ignitionPlease note : Driving is not possible during the installation of the updatePlease note : Once the procedure for installing the update has been started, it cannot be paused or cancelledPlease note : Do not do anything to the vehicle or disconnect the ancillaries battery while installing the update, even if the vehicle enters ECO mode or the multifunction screen turns black. This change is due to the installation of the new software and is normal |
| Wait 1 minute for the radio frequency connectivity box (BSRF / RTBM) to synchroniseNote : If the message "Update not possible while driving" appears ; Start the internal combustion engine, switch off the ignition and continue with the procedure |
| Select the menu : Parameter |
| Select the menu : update |
| Select the menu : "Press to install"Note : The words "Activation of a new service" may not appear in some cases, this has no effect on the procedure |
| Install the software |
| The installation of the software on the vehicle may take up to 20 minutes, do not carry out any work on the vehicle |
| The progress of the software installation on the vehicle is not linear, some screens may remain at the same progress level for several minutes (approximately 90% of the installation time is displayed at 25%) |
| The installation of the software is complete when the message "Installation successful" appearsGo to stage 7 - Check after repair |
| If the procedure fails, stops or crashes, repeat the procedure from stage 6 - Second download and installation of the radio frequency connectivity box (BSRF / RTBM) update and of the IVI audio-navigation system/IVI connected audio system update |
N.B. : If the problems persist, contact the technical assistance platform through a dealer issue detection assistance (DID A) pre-classified as "Audio/Telematics/Telephone" and mention the usual information, the code of the campaign being carried out, the problem encountered and the VIN under "additional information on the customer symptom".
7. Check after repair
7.1. Initialisation / becoming dormant
Initialisation / becoming dormant :
- Disconnect the ancillaries battery charger
- Switch off the ignition
- Close all of the doors and windows, and move the hands-free identifiers away from the vehicle
- Wait 10 minutes without any action on the vehicle
CAUTION : This stage is important in order for all of the ECUs to synchronise.
N.B. : If this stage is not carried out, the vehicle will present malfunctions.
7.2. Check after repair
Perform the following operations :
- Read the faults using the diagnostic tool
- Erase the fault codes (If necessary)
- Start the vehicle
- Check the operation of the vehicle
- Check the operation of the audio system
N.B. : In some cases, the configuration of the IVI audio-navigation system/connected audio system reverts to the default settings; inform the customer that they will need to reprogramme the parameters.
